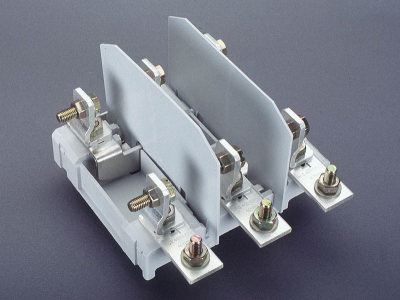

The picture may show a similar product.
Part No.: 03518 000
QUADRON®60Classic
busbar mounted fuse base for semicoductor fuses
tapping downward, gauge 110 mm
size 2 / 3P
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
no longer available
System
60Classic
| Product group | 10 |
| Subgroup | 59 |
| pack size | 1 |
| EAN | 4021267035181 |
| ECLASS 6.1 | 27142106 |
| ECLASS 7.1 | 27142106 |
| ETIM 4.0 | EC000067 |
| ETIM 5.0 | EC000067 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
| for fuse links size: | NH 2 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016 |
| Electrical data IEC | |
| rated current (IEC): | 400 A |
| rated voltage (IEC) AC: | 690 V |
| rated voltage (IEC) DC: | 440 V |
| rated surge voltage Uimp : | 6 kV |
| short-circuit strength when protected by fuses: | 50 kA |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 800 V |
| max. permitted voltage (IEC) DC: | 800 V |
| for fuse links DIN 43653 size 1 -3, gauge 110, |
| Mechanical data | |
| W x H x D: | 187 x 210 x 145 |
| weight: | 239,7 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
Type of fastening: hook clips
connection of lines screw:
screw connection M10, 18 - 22Nm torque,
fastening of the fuse links:
screw M10, 12 - 14Nm torque
| Terminal points | |
| Not suitable for aluminium cables ! |
| Not suitable for aluminium cables ! | |
