31198 000

cylindr. fuse link 32 A
Size 22x58
690 V, gG
22 x 58
More

31199 000

cylindr. fuse link 40 A
Size 22x58
690 V, gG
22 x 58
More

31200 000

cylindr. fuse link 50 A
Size 22x58
690 V, gG
22 x 58
More

31201 000

cylindr. fuse link 63 A
Size 22x58
690 V, gG
22 x 58
More

31202 000

cylindr. fuse link 80 A
Size 22x58
500 V, gG
22 x 58
More

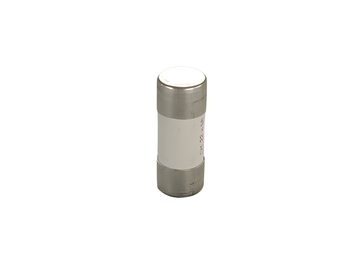

31203 000

cylindr. fuse link 100 A
Size 22x58
500 V, gG
22 x 58
More

31204 000

cylindr. fuse link 125 A
Size 22x58
400 V, gG
22 x 58
More
