33421000

QUADRON^®60Classic
busbar mounted fuse holder Class J
for fuse links Class J 1 - 30 A (21x57)
3P, with box terminal
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

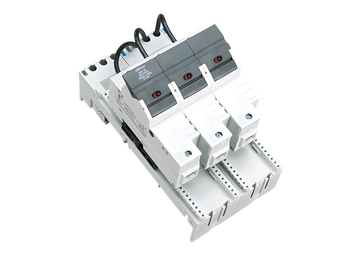

31968000

AMBUS^®60Classic
busbar mounted fuse holder Class J
for fuse links Class J 1 - 30 A (21x57), with LED
3P, complete solution based on busbar adapter
connection bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
