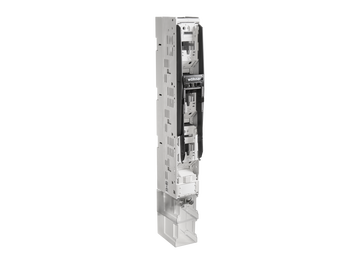

33000000A

QUADRON^®185Power
in-line fuse switch-disconnector 910 A
size 3, 1-pole switchable
standard connection
for busbars: 80, 100, 120 x 10
NEW
More

33005000A

QUADRON^®185Power
in-line fuse switch-disconnector 910 A
size 3, 1-pole switchable
connection 200 mm width
for busbars: 80, 100, 120 x 10
NEW
More

33008000A

QUADRON^®185Power
in-line fuse switch-disconnector 1000 A
size 3, 1-pole switchable
standard connection
for busbars: 80, 100, 120 x 10
NEW
More

33033000A

QUADRON^®185Power
in-line fuse switch-disconnector 910 A
size 3, 1-pole switchable
rear connection
for busbars: 80, 100, 120 x 10
NEW
More
