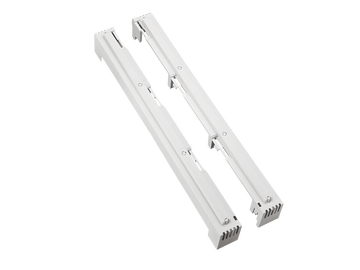

01431 000A

end cover for busbar support 01430
set for one left and one right busbar support
More

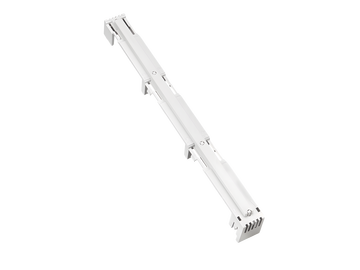

01432 000A

centre cover for busbar support 01430
when using the busbar support as a centre support
More

01433 000A

CrossLink^®185Power
CrossLink® touch-safe protection cover module
50 mm wide
50 x 540
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

01434 000A

CrossLink^®185Power
CrossLink® touch-safe protection cover module
100 mm wide
100 x 540
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

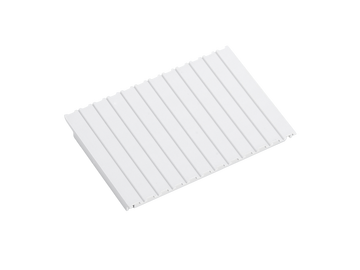

01435 000A

CrossLink^®185Power
front cover IP40
for CrossLink® covers
100 mm wide, 1-pole
More

01420 000A

system shrouding, rear
set for busbar support distance 550 mm (centre to centre)
More

01436 000A

system shrouding, rear
set for busbar support distance 700 mm (centre to centre)
More

01440 000A

completion section
499 mm long
499 x 16
More

01444 000A

completion section
649 mm long
649 x 16
More

01445 000A

CrossLink^®185Power
system cover
99 mm wide
99 x 670
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

01251 000

busbar cover
for 40 - 60 x 10 busbars, 1m long
touch protection cover
More
