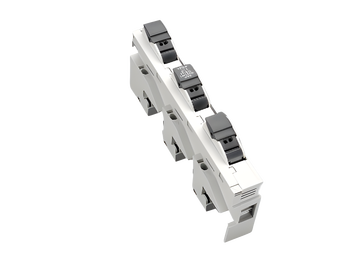

31958000

AMBUS^®60Classic
busbar mounted fuse holder
for fuses Class CC UL 248-4
Class CC / 3P
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31959000

AMBUS^®60Classic
busbar mounted fuse holder, with LED
for fuses Class CC UL 248-4, with LED 110 - 690 V AC / DC
Class CC / 3P
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
