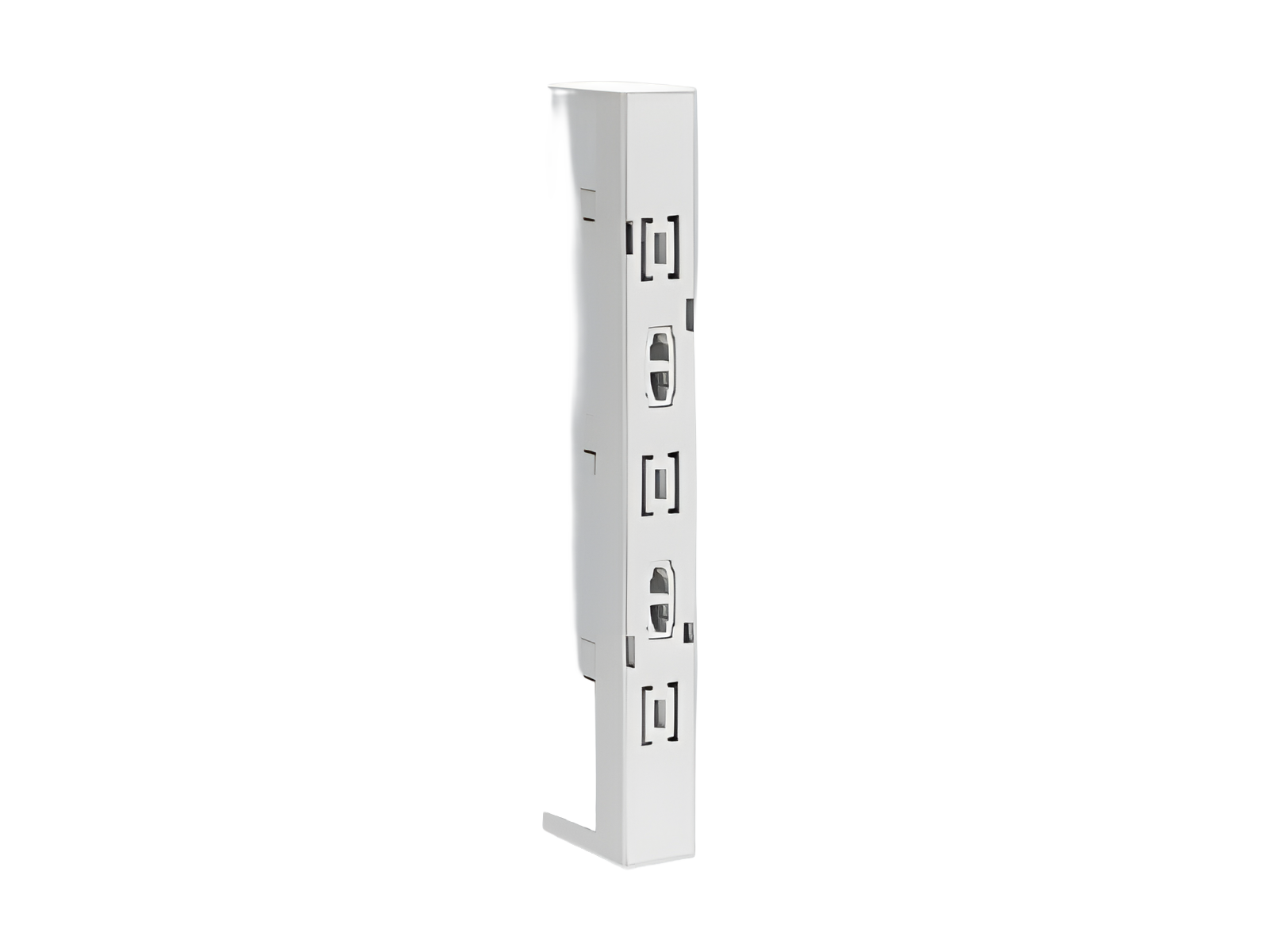

spare part busbar adapter 25 A (36114)

The picture may show a similar product.

Description

Part No.: 36114000B

EQUES®60Classic

spare part busbar adapter 25 A

busbar adapter base

with CrossLink® interface

System

60Classic

Product group 05
Subgroup 58
pack size 1
EAN 4021267361143
ECLASS 6.1 27370304
ECLASS 7.1 27370304
ETIM 4.0 EC001531
ETIM 5.0 EC001531

Approvals

Standards

EN 60947-1:2015
EN 60947-4-2:2012
EN 61439-1:2012
EN 50581:2012
EN ISO 13849-1:2015

UL 60947-1

Approvals

UL , Atex

for UL feeder circuits >250V

type number: MCC-60

UL file: E360470, UL category (for USA): NLDX https://www.ul.com

UL file: E360470, UL category (for Canada): NLDX7 https://www.ul.com

CCC approval: no certification required

Type-Examination Certificate: PTB13AT3001

Technical data

Details IEC
Standards
EN 60947-1:2015
EN 60947-4-2:2012
EN 61439-1:2012
EN 50581:2012
EN ISO 13849-1:2015
Electrical data IEC
rated current (IEC): 25 A
rated voltage (IEC) AC: 690 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,2 W.

(The power dissipation at full load would be 0,3 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 725 V
Details UL
Standards
UL 60947-1
for UL feeder circuits >250V
Electrical data UL
rated current (UL): 12.5 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
SCCR unprotected max.: 6 kA
3 cycles (without OPD) @ 600 V AC
SCCR protected max.: 50 kA
with JDDZ fuse Class CC 20 A / 600 V AC
Mechanical data
W x H x D: 22.5 x 200 x 42
weight: 11,0 kg/100
poles: 3-pole

Application notes

short-circuit withstandability: determined by main product
for UL feeder circuits >250V
