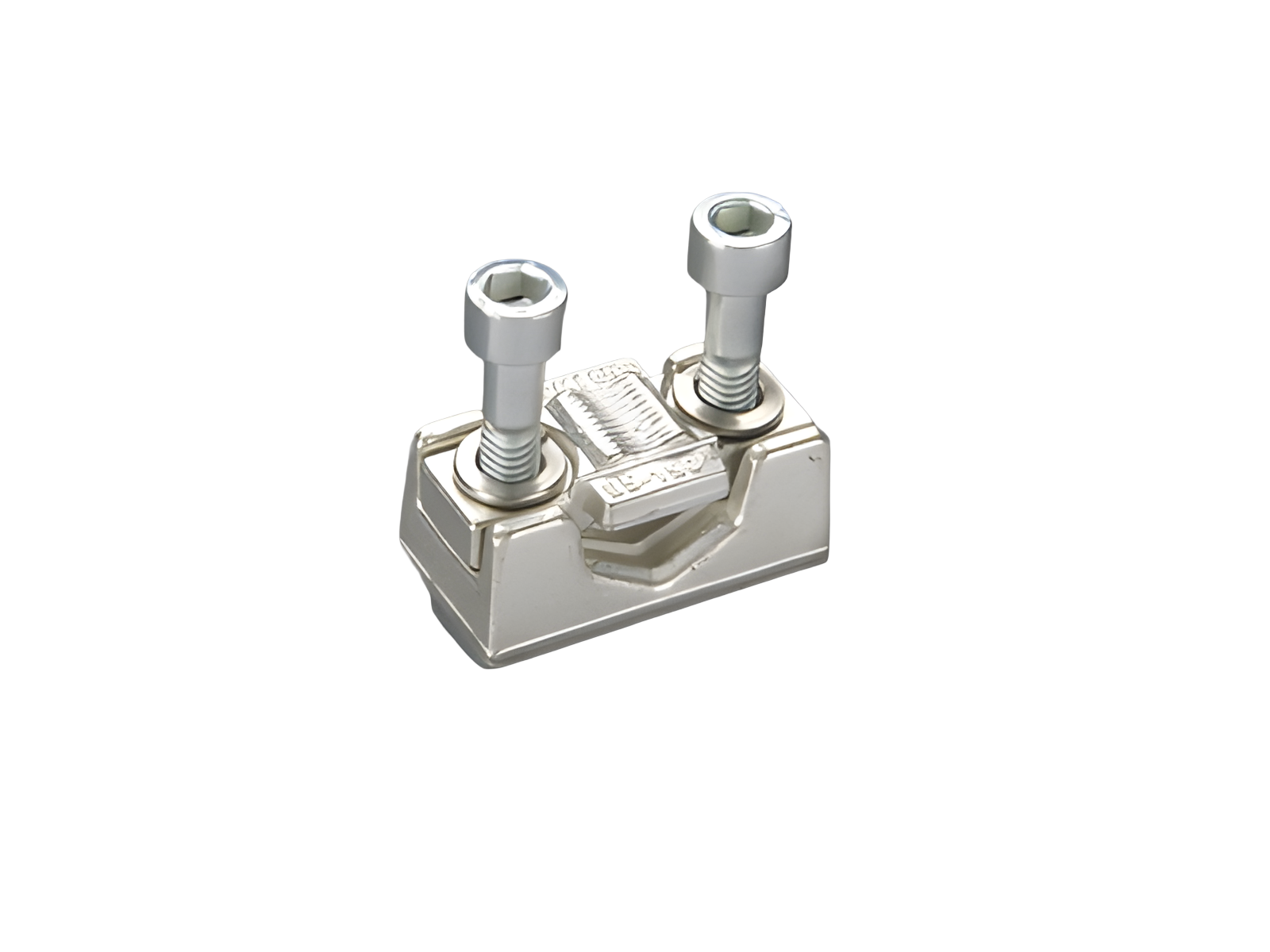

prism terminal, single, for Cu cables (33166)

The picture may show a similar product.

Description

Part No.: 33166 000

prism terminal, single, for Cu cables

35 - 150 mm²

QCB-NH1, QCS-NH1, QCS-320

for QCB-NH1, QCS-NH1, QCS-320

System

60Classic

Product group 09
Subgroup 51
pack size 1
EAN 4021267331665
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 11,6 kg/100
Terminal points
screw drive: S5
wire stripping: 23 mm
min. cross-section: 35 mm²
max. cross-section: 150 mm²
rm: 35 - 150 mm²
f: 35 - 150 mm²
f + AE: 35 - 150 mm²
(f + AE may not fit with max. cross-section)
sm: 35 - 150 mm²
Md min.: 4,8 Nm
Md max.: 7,2 Nm
Not suitable for aluminium cables !

Application notes

Not suitable for aluminium cables !

determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33515 000
QUADRON®Panel Speed
switch disconnector with fuses, 3-pole
screw M10, for door coupling rotary handle
size 1
double-breaking
operator independent switching (snap-action mechanism)
for mounting plate
More

03301 000
QUADRON®60Classic
NH fuse base 250 A
screw M10
size 1 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33552 000
QUADRON®Panel Speed
switch-disconnector 3-pole
screw M10
320 A
for mounting plate
More

33512 000
QUADRON®Panel Speed
switch disconnector with fuses, 3-pole
screw M10
size 1
double-breaking
operator independent switching (snap-action mechanism)
for mounting plate
More

33514 000
QUADRON®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection top, for door coupling rotary handle
size 1
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33553 000
QUADRON®60Classic Speed
switch-disconnector 3-pole
screw M10, connection bottom, for door coupling rotary handle
320 A
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33551 000
QUADRON®60Classic Speed
switch-disconnector 3-pole
screw M10, connection top
320 A
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33513 000
QUADRON®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection bottom, for door coupling rotary handle
size 1
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33554 000
QUADRON®60Classic Speed
switch-disconnector 3-pole
screw M10, connection top, for door coupling rotary handle
320 A
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33516 000
QUADRON®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection bottom, with electronic fuse monitoring
size 1
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33550 000
QUADRON®60Classic Speed
switch-disconnector 3-pole
screw M10, connection bottom
320 A
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33511 000
QUADRON®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection top
size 1
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

03300 000
QUADRON®60Classic
NH fuse base 250 A
box terminal
size 1 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33510 000
QUADRON®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection bottom
size 1
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33600 000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
box terminal
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33393 000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
box terminal
for mounting plate
More

33149 000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electromechanical fuse monitoring
for mounting plate
More

33201 000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
for mounting plate
More

33160 000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33330 000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electronic fuse monitoring
for mounting plate
More

33325 000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33601 000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
