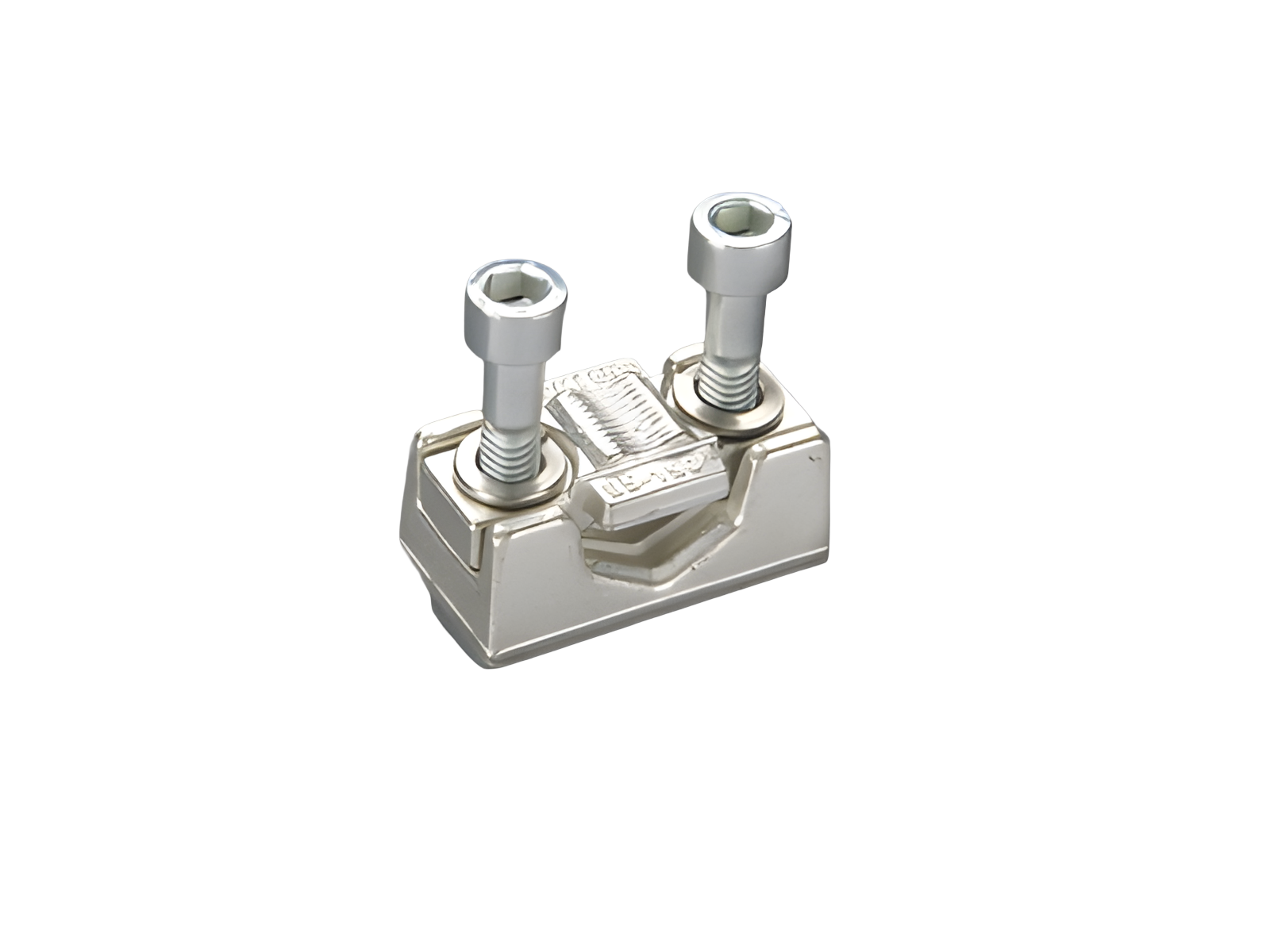

prism terminal, single, for Cu cables (33166)

The picture may show a similar product.

Description

Part No.: 33166000

prism terminal, single, for Cu cables

35 - 150 mm²

QCB-NH1, QCS-NH1, QCS-320

for QCB-NH1, QCS-NH1, QCS-320

System

60Classic

Product group	09
Subgroup	51

pack size	1
EAN	4021267331665

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
weight:	11.6 kg/100

Terminal points
screw drive:	S5
wire stripping:	23 mm
min. cross-section:	35 mm²
max. cross-section:	150 mm²
rm:	35 - 150 mm²
f:	35 - 150 mm²
f + AE:	35 - 150 mm²
(f + AE may not fit with max. cross-section)
sm:	35 - 150 mm²
Md min.:	4.8 Nm
Md max.:	7.2 Nm
Not suitable for aluminium cables !

Application notes

Not suitable for aluminium cables !

short-circuit withstandability:	determined by main product
