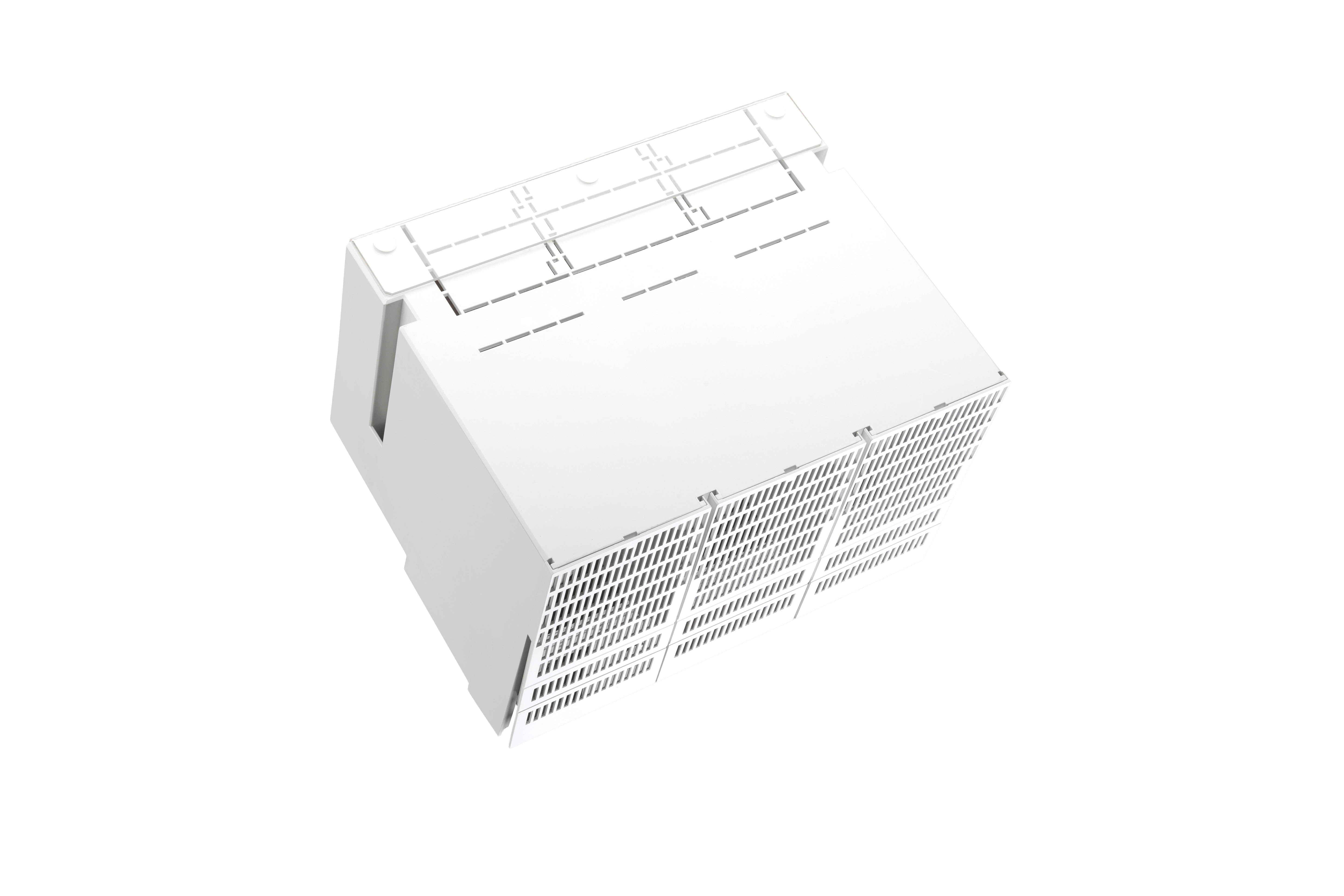

IP20 protection cover (front) (32702)

The picture may show a similar product.

Description

Part No.: 32702000A

IP20 protection cover (front)

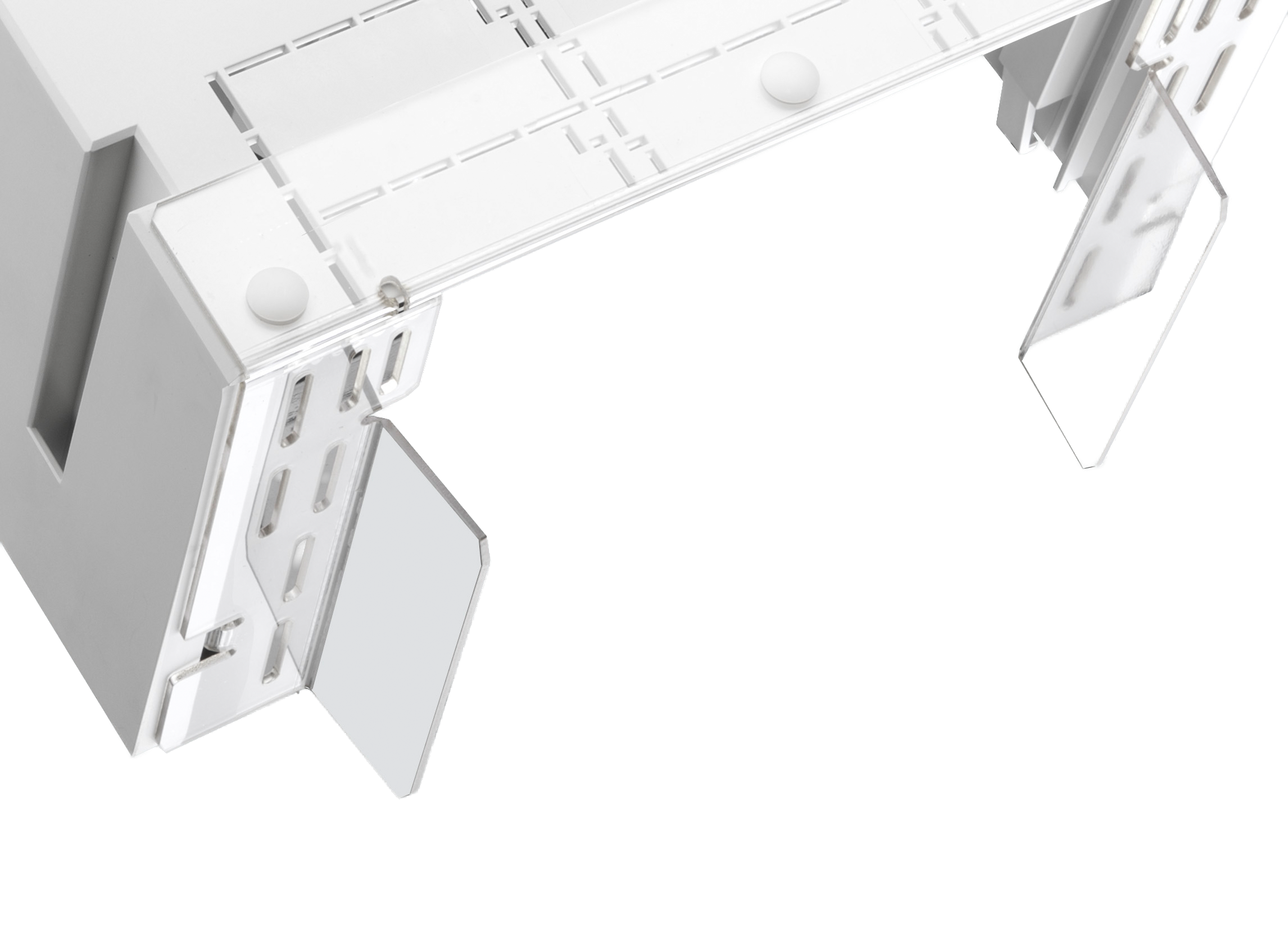

incl. 3 top covers

300 mm wide

for Schneider Electric NS630B, NS800, NS1000, NS1250, NS1600

System

185Power

Product group 05
Subgroup 57
pack size 1
EAN 4021267327026
catalog page 2020 : 4.8
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2011

Approvals

EAC

type number: C185-E

EAC Type: CO-A

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2011
Electrical data
short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
Mechanical data
W x H x D: 297 x 232 x 194
weight: 122,8 kg/100
poles: 3-pole

Links

Article master data, overviews and prices

Current metal surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| EU declaration of conformity

| Declaration of conformity UKCA

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

32704000A
touch-safe protection shroud IP20 (rear installation)
for all adapters
More

Usage

32737000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, clamp connection
for: Schneider Electric NS1250
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32721000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, screw connection, changed phase
for: Schneider Electric NS1250
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32720000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, Verbindung unten, Schraubkontaktierung, Phasendrehung
for: Schneider Electric NS1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32756000A
EQUES®185Power
busbar adapter 1450 A
300 x 652, connection top, clamp connection
for: Schneider Electric NS1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32757000A
EQUES®185Power
busbar adapter 1250 A
300 x 652, connection top, clamp connection
for: Schneider Electric NS1250
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32775000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection top / bottom, screw connection
for: Schneider Electric NS1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32776000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection top / bottom, screw connection
for: Schneider Electric NS1250
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32734000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection bottom, clamp connection
for: Schneider Electric NS1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32718000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection bottom, clamp connection, changed phase
for: Schneider Electric NS1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32719000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, clamp connection, changed phase
for: Schneider Electric NS1250
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32758000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection top, clamp connection
for: Schneider Electric NS630B, NS800, NS1000
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32777000A
EQUES®185Power
busbar adapter 900 A
300 x 652, connection top / bottom, screw connection
for: Schneider Electric NS630B, NS800, NS1000
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32747000A
EQUES®185Power
busbar adapter 900 A
300 x 652, connection bottom, clamp connection
for: Schneider Electric NS630B, NS800, NS1000
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
