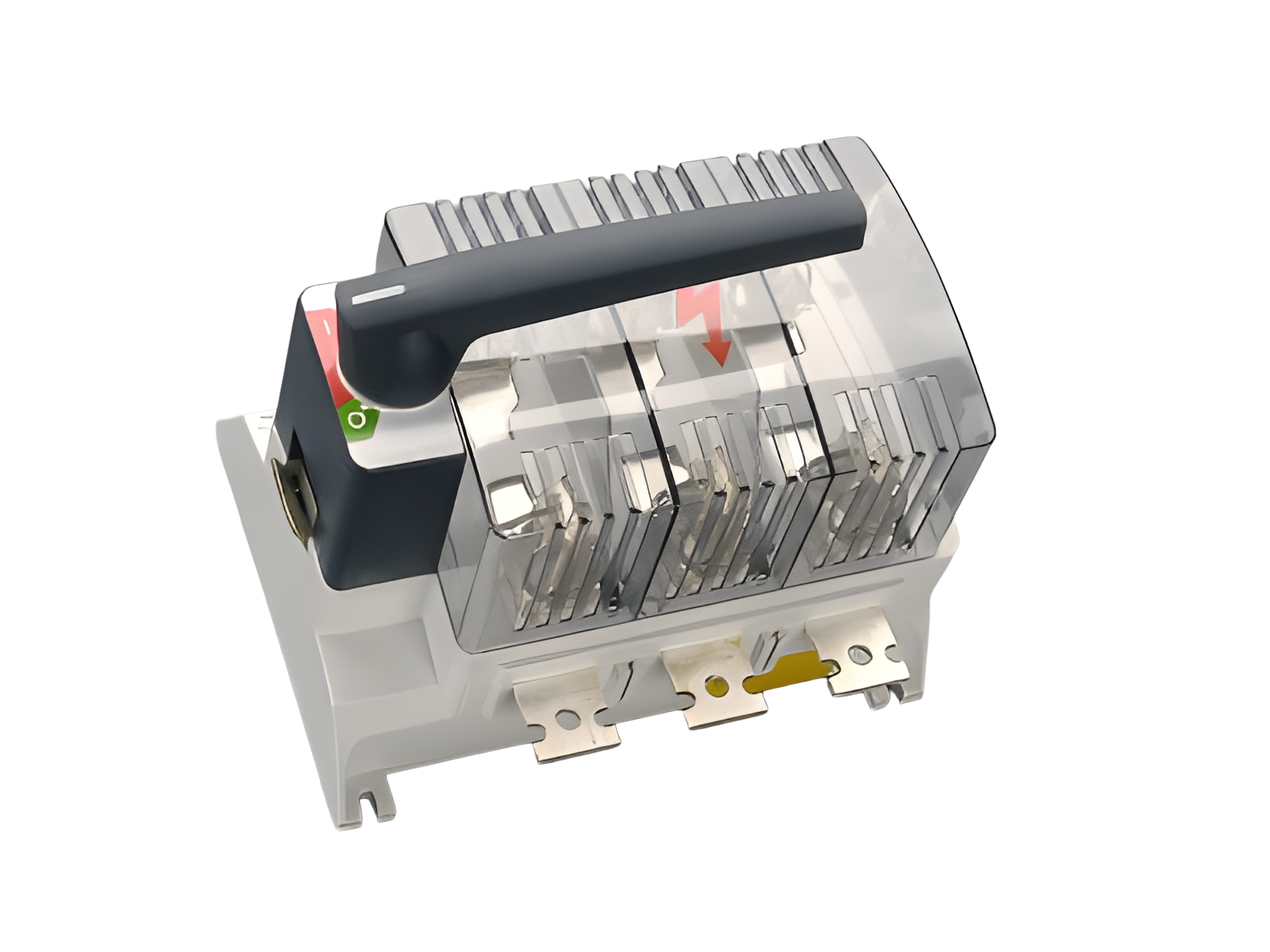

Part No.: 33338000
CAPUS®Panel
switch disconnector with fuses, 3-pole
screw M10, graphite-grey handle
size 1
for mounting plate
ERGONFUSE-250
System
Panel
Advantages of the product
double-breaking main contacts, visible separation sections, user-independent switching, voltage-free exchange of fuses, assembly and connection material contained in scope of delivery.
| Product group | 15 |
| Subgroup | 06 |
| pack size | 1 |
| EAN | 4021267333386 |
| ECLASS 6.1 | 27371401 |
| ECLASS 7.1 | 27371401 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB)
type number: LTS-F250
| for fuse links size: | NH 1 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 23 W |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 250 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (690V) AC-22B (690V) AC-21B (690V) |
| cond. short-circuit current with fuses (AC): | 80 kA / 690 V |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 28,8 W.
(The power dissipation at full load would be 45,0 W.)
| Mechanical lifespan (switching operations) 7000 | |
| conv. therm. current in housing 250 A, horizontal installation (adjacent poles) encapsulated 504 x 378 x 302mm 250 A, vertical installation (poles beneath each other) encapsulated 500 x 500 x 300mm |
|
| Shock protection at front with terminal space cover IP20 for fuse links DIN 43620 size 1 up to 23W power dissipation |
| Mechanical data | |
| W x H x D: | 270 x 232 x 253 |
| weight: | 726,0 kg/100 |
| poles: | 3-pole |
| Mounting: | for mounting plate |

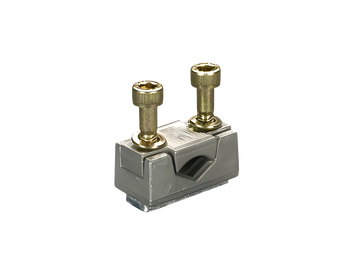

Connection screw (clamps and wedge clamp terminal can be retrofitted),
screw connection
M10, 28Nm ± 10% torque,
clamp connection for lam. Cu
terminal space 18x1-10mm,
6-8Nm torque
wedge clamp connection, single
cross-section 70 - 150mm², s(r), f, f+AE** Cu - Al*, 6-8Nm torque
wedge clamp connection, double
cross-section 2 x 70 - 120mm², s(r), f, f+AE** Cu, 6-8Nm torque
* Aluminium conductors must be prepared before connection in accordance with the pertinent technical recommendations. The connections are to be checked at regular intervals and serviced not later than every 6 months.
** reduction in the max. conductor cross-sections may be required.
| Terminal points | |
| Not suitable for aluminium cables ! | |
|
screw M10 : |
|
| Not suitable for aluminium cables ! | |
|
Reference |
When installing a cover, the switch-disconnector on the housing must not be closed, the safety instructions for the Emergency Stop switch must be observed. |
| permitted power dissipation of the fuse-link: | 23 W |
