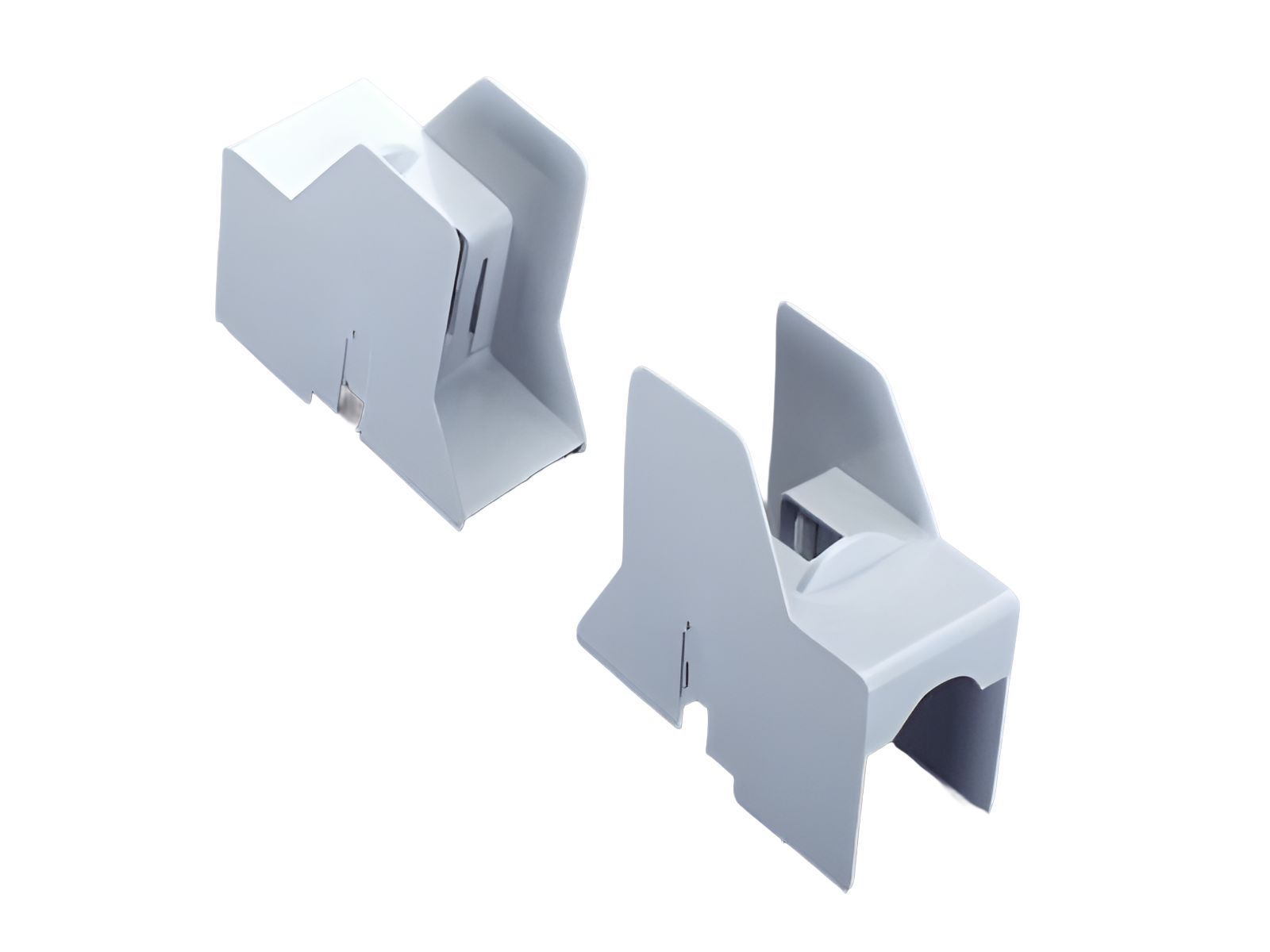

shock protection in two parts (03791)

The picture may show a similar product.

Description

Part No.: 03791000

shock protection in two parts

for NH fuse-base

size 00

System

60Classic, 100Energy

Product group	10
Subgroup	66

pack size	10
EAN	4021267037918

catalog page

2015 : 3.3

ECLASS 6.1	27149217
ECLASS 7.1	27149217
ETIM 4.0	EC001660
ETIM 5.0	EC001660

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

Approvals

EAC

EAC Type: CO-A

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016

Electrical data
short-circuit withstandability:	not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Mechanical data
W x H x D:	35 x 102 x 86
weight:	3,5 kg/100

Links

Article master data, overviews and prices

Current metal surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD symbol 2D DXF

| EU declaration of conformity

| Declaration of conformity UKCA

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

03587000
QUADRON^®60Classic
NH fuse-base 160 A
screw, screw-on on bar
size 00 / 1P
More

03369000
QUADRON^®60Classic
NH fuse-base 160 A
clamp
size 00 / 1P
More

03370000
QUADRON^®60Classic
NH fuse-base 160 A
screw
size 00 / 1P
More
