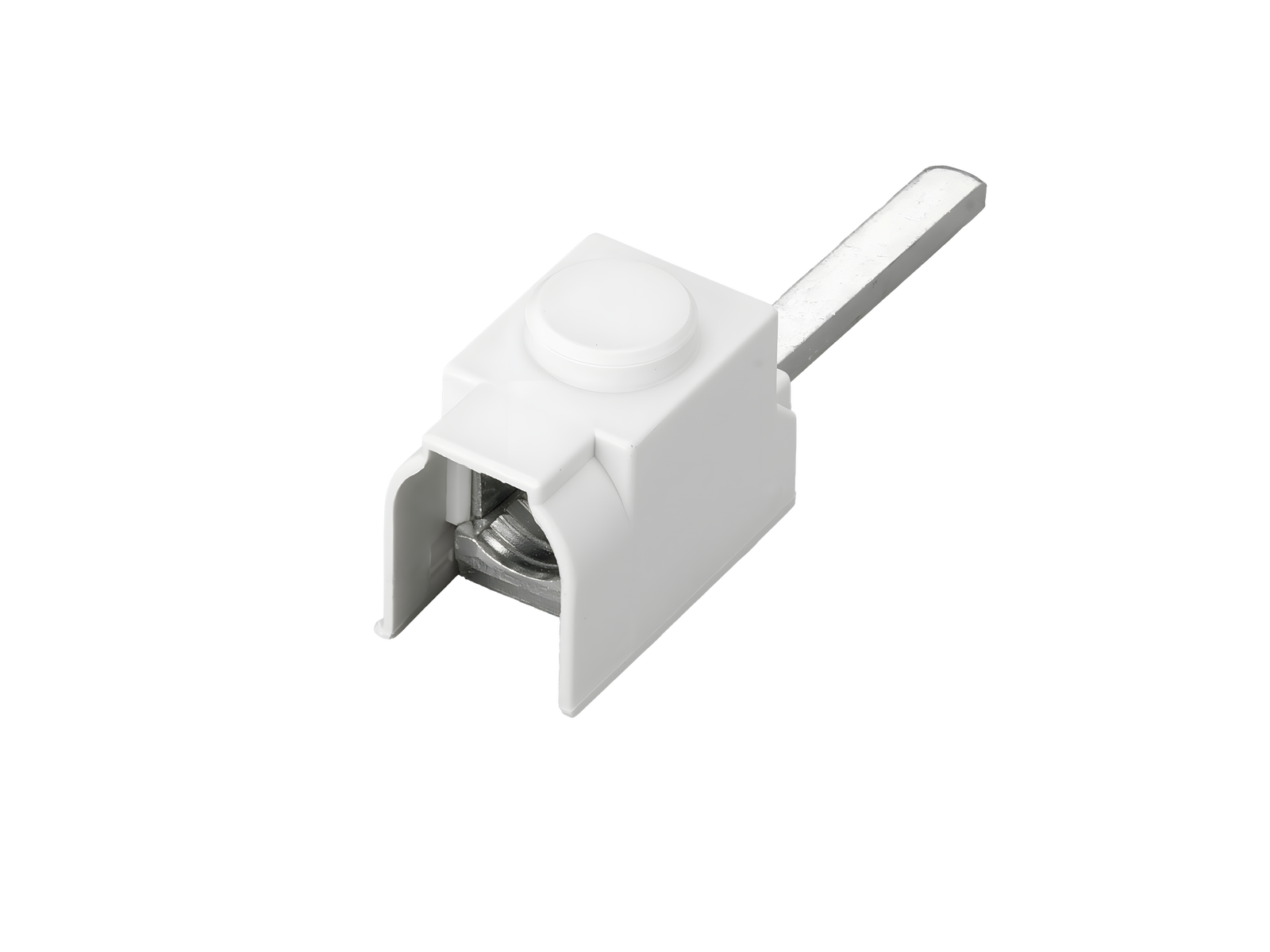

Part No.: 01228000A
connection terminal, front connection
25 - 95 mm²
for 31056
| Product group | 07 |
| Subgroup | 26 |
| pack size | 3 |
| EAN | 4021267012281 |
| ECLASS 6.1 | 27371390 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| Rated current (IEC): | 225 A |
| rated voltage (IEC) AC: | 400 V |
| rated surge voltage Uimp : | 4 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 690 V |
| max. permitted voltage (IEC) DC: | 600 V |
| Mechanical data | |
| W x H x D: | 21 x 34 x 28 |
| weight: | 9,3 kg/100 |
| Terminal points | |
| min. cross-section: | 25 mm² |
| max. cross-section: | 95 mm² |
| Not suitable for aluminium cables ! | |
|
25 - 90mm² round, solid and stranded |
|
| Not suitable for aluminium cables ! | |
| The insulation performance of the article depends on the installation conditions. | |
|
Reference |
Recommended stripping of the insulation on the connection lead approx. 26mm |
