for UL feeder circuits >250V
The picture may show a similar product.
Part No.: 01014000A

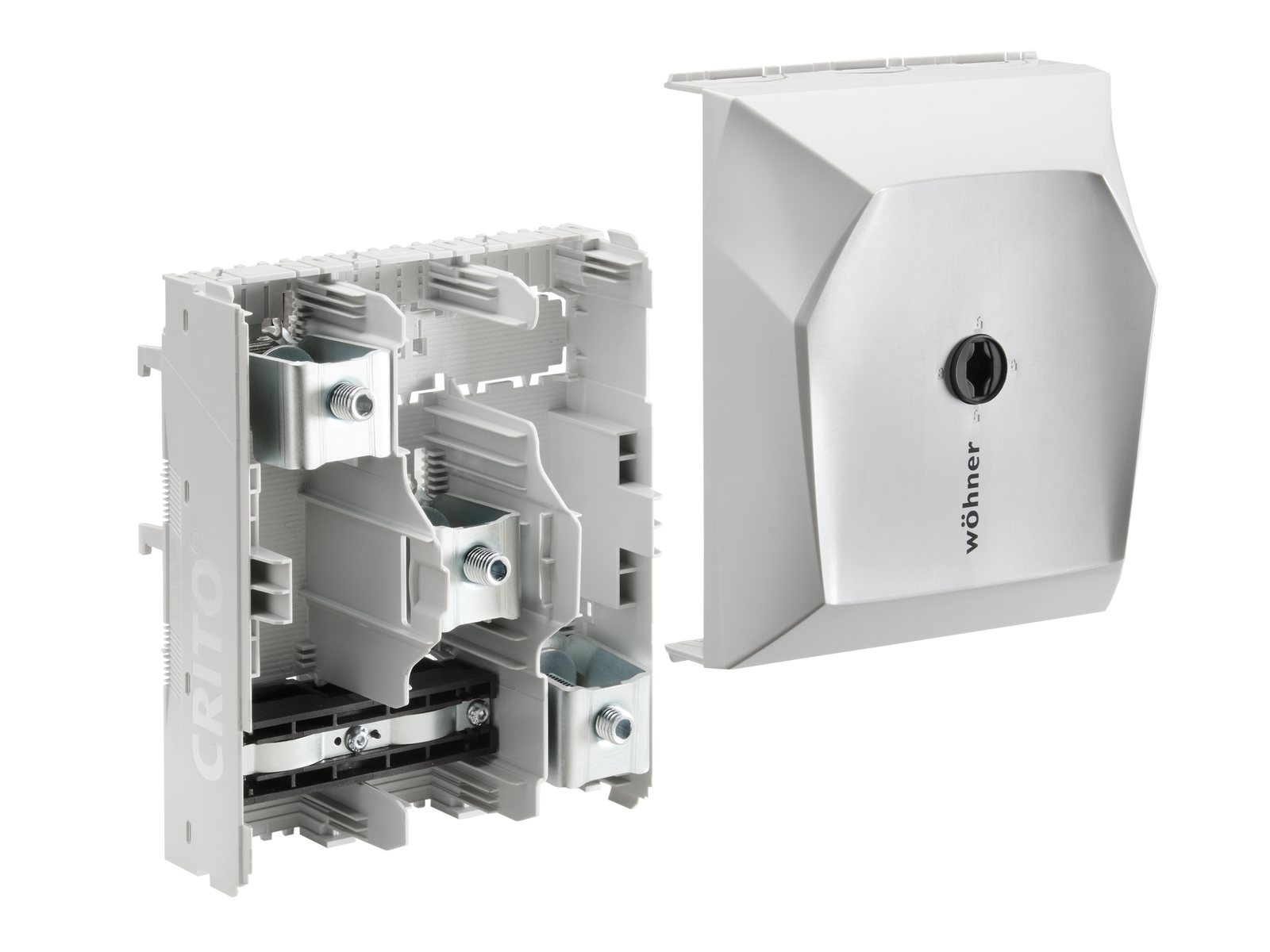

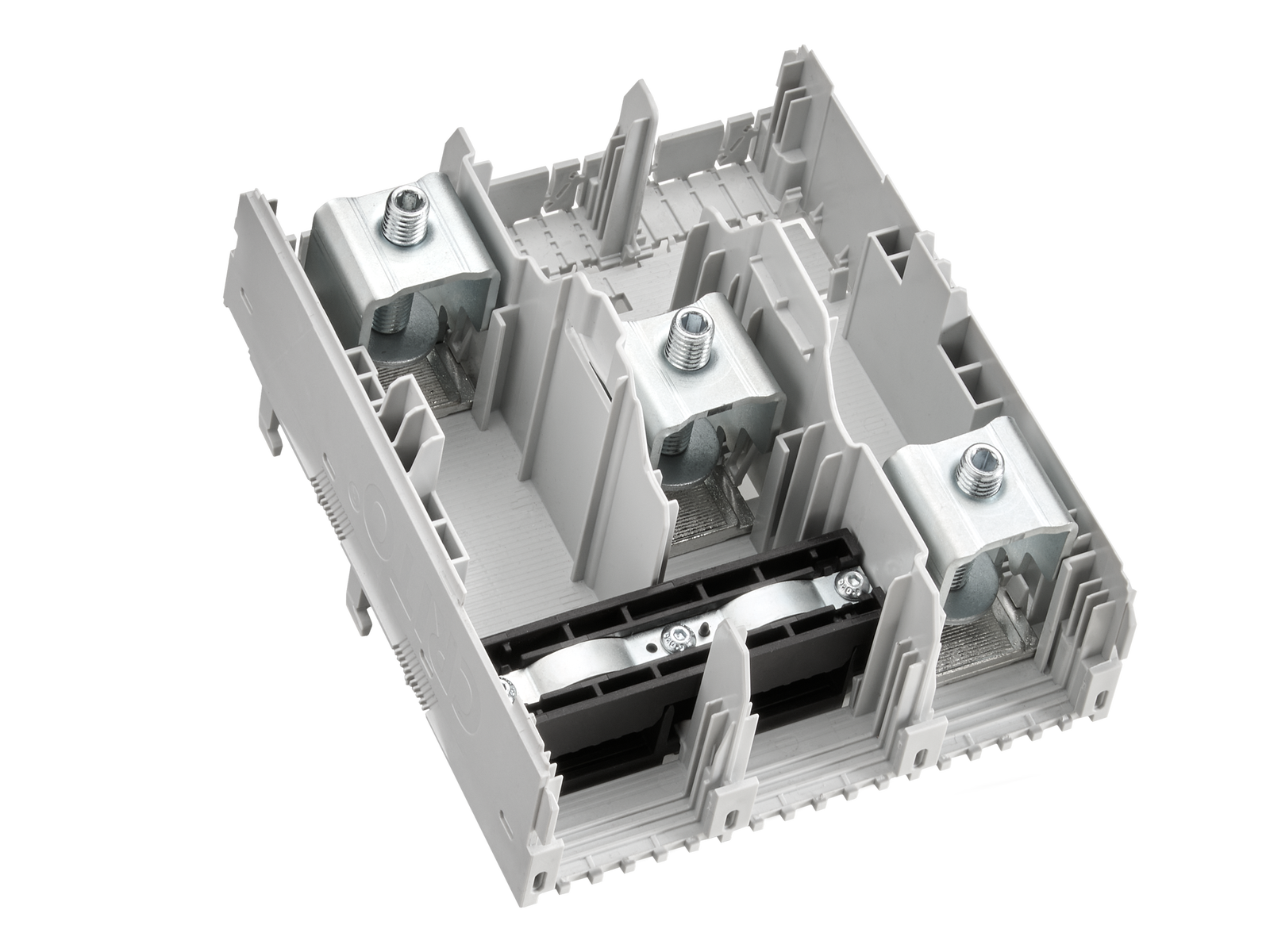

CRITO®CrossBoard
connection terminal plate, 3-pole
lam. Cu. 20 - 32 x 3 - 15
coming soon
System
CrossBoard® 800 A
Advantages of the product
also rigid copper busbars can be connected if they are installed without mechnical tension
| Product group | 07 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267010140 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
Approvals
DNV GL
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| Rated current (IEC): | 630 A |
| rated voltage (IEC) AC: | 690 V |
| rated peak withstand current Ipk max.: | 80 kA |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| max. permitted voltage (IEC) DC: | 1500 V |
| current capacity (IEC) max.: | 630 A |
| Mechanical data | |
| W x H x D: | 173 x 200 x 118 |
| weight: | 144,7 kg/100 |
| poles: | 3-pole |
| Terminal points | |
| screw clamp connection | |
| Md min.: | 24,0 Nm |
| Md max.: | 36,0 Nm |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| The insulation performance of the article depends on the installation conditions. | |
