for UL feeder circuits >250V

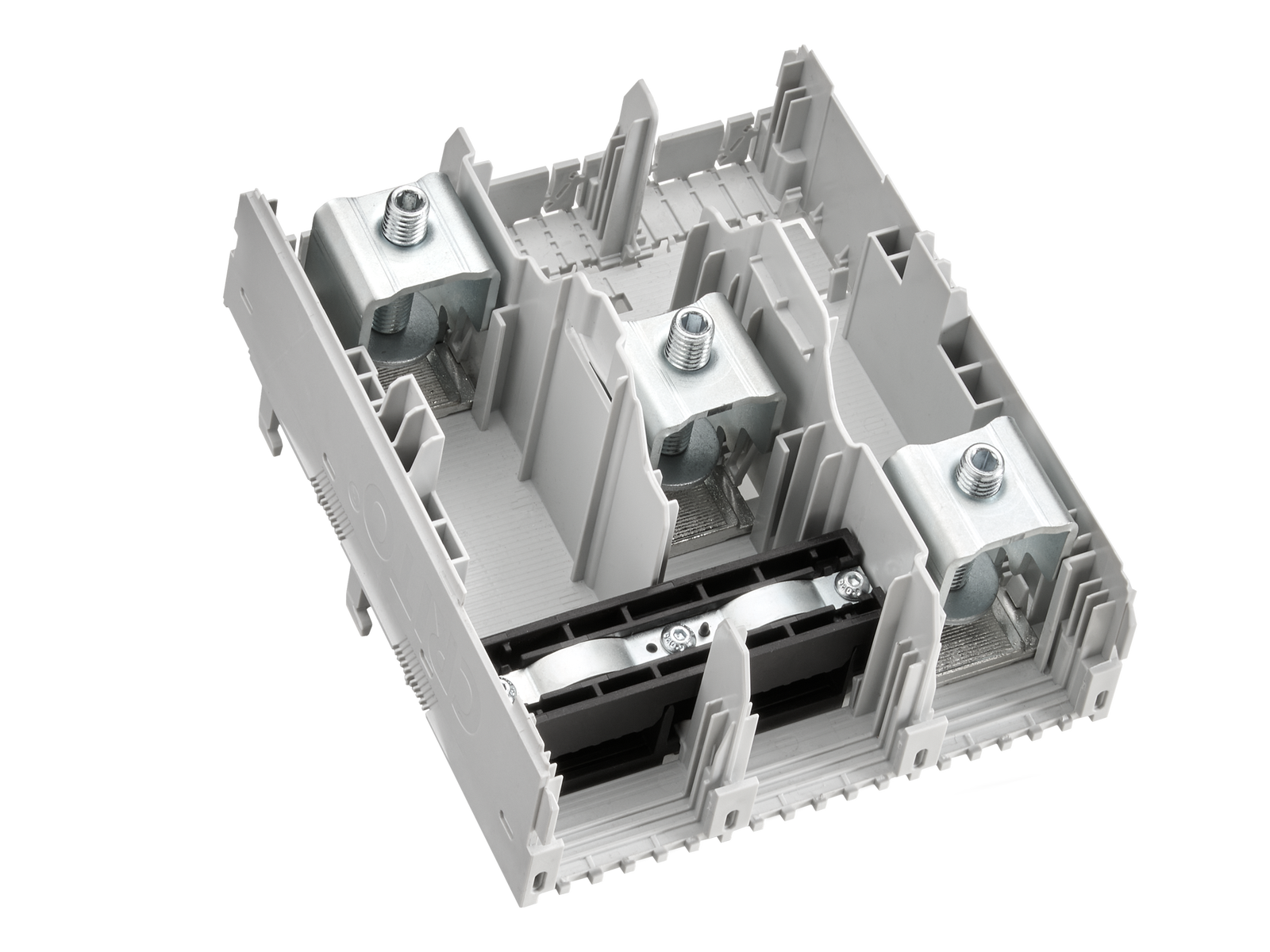

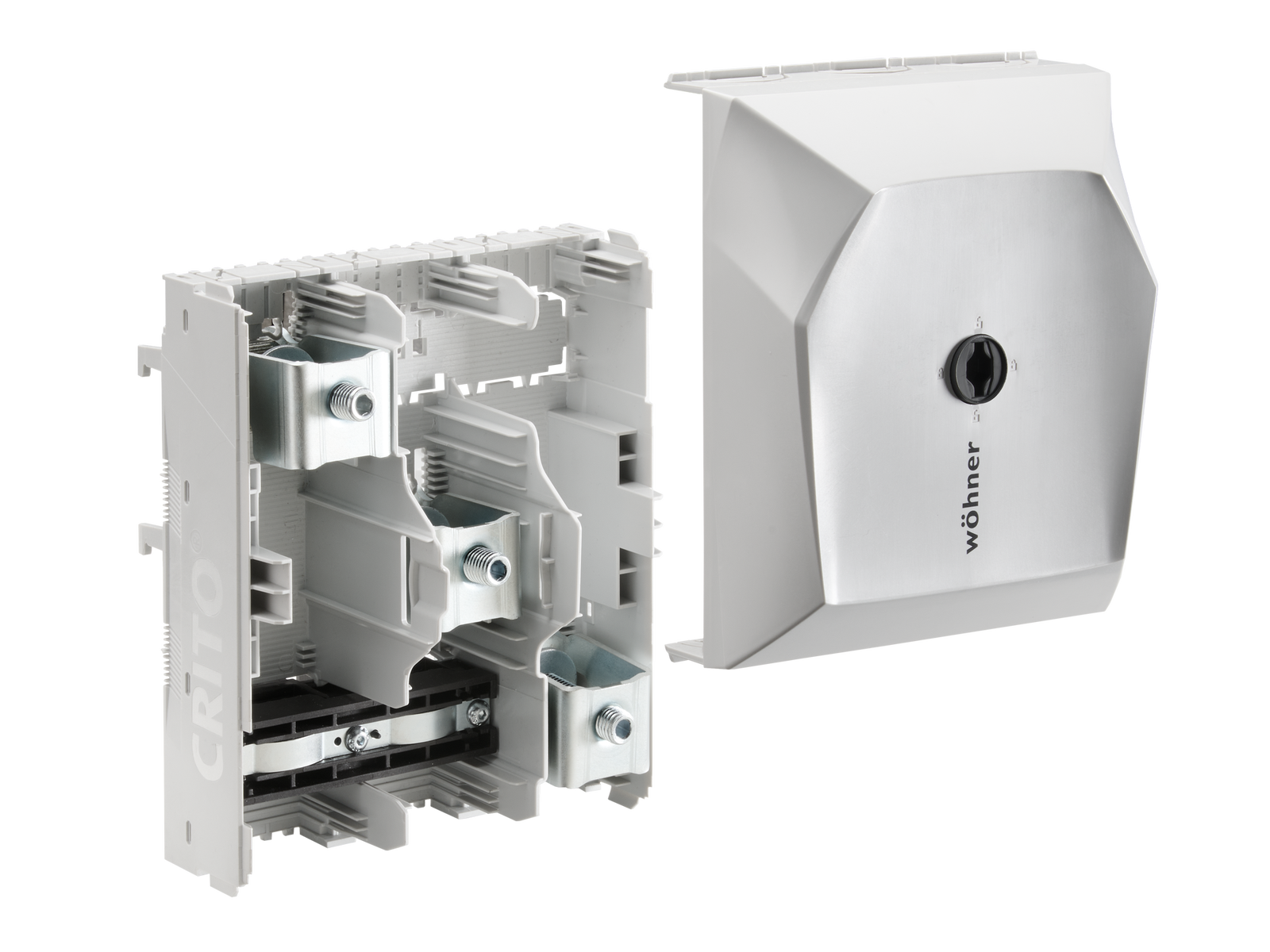

connection terminal plate, 3-pole (01014)

The picture may show a similar product.

Description

Part No.: 01014000A

CRITO®CrossBoard

connection terminal plate, 3-pole

lam. Cu. 20 - 32 x 3 - 15

connection top or bottom

coming soon

System

CrossBoard® 800 A

Advantages of the product

also rigid copper busbars can be connected if they are installed without mechnical tension

Product group 07
Subgroup 51
pack size 1
EAN 4021267010140
ECLASS 6.1 27141146
ECLASS 7.1 27141146
ETIM 4.0 EC000001
ETIM 5.0 EC000001

Approvals

Standards

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: CR-F-171-F

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
Electrical data IEC
rated current (IEC): 630 A
rated voltage (IEC) AC: 690 V
rated isolation voltage Ui AC: 1000 V
rated surge voltage Uimp : 6 kV
rated peak withstand current  Ipk max.: 80 kA
rated short-time withstand current Icw (1.0 s) max.: 40 kA
Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC: 1000 V
max. permitted voltage (IEC) DC: 1500 V
current capacity (IEC) max.: 630 A
Details UL
Standards
UL 508
for UL feeder circuits >250V
suitable for field-installed conductors
Electrical data UL
rated current (UL): 600 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 600 V
for wires UL: Cu 75°C
SCCR unprotected max.: 40 kA
3 cycles (without OPD) @ 600 V AC
SCCR protected max.: 100 kA
SCCR: 100 kA with JDDZ fuse Class L/T 800 A / 600 V AC
Mechanical data
W x H x D: 173 x 200 x 118
weight: 144.7 kg/100
poles: 3-pole
front degree of protection: IP30
Terminal points
screw clamp connection
screw drive: S8
wire stripping: 38 mm
Md min.: 20.0 Nm
Md max.: 30.0 Nm
Not suitable for aluminium cables !
for wires UL: Cu 75°C


lam. Cu from 3 x 20 x 1 to 10 x 32 x 1

Application notes

Not suitable for aluminium cables !
The insulation performance of the article depends on the installation conditions.
for UL feeder circuits >250V
