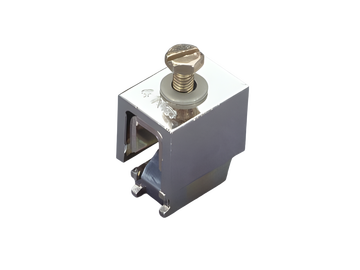

01512000

clip-on screw connection, for cable lugs
M5
for busbars: flat busbars 10 mm
More

01514000

clip-on screw connection, for cable lugs
M8
for busbars: 12, 15, 20, 25, 30 x 10 and section busbars
More

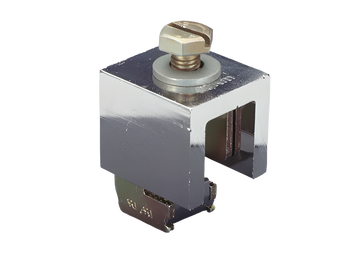

01047000

clip-on screw connection, for cable lugs
M10
for busbars: 12, 15, 20, 25, 30 x 10 and section busbars
More
