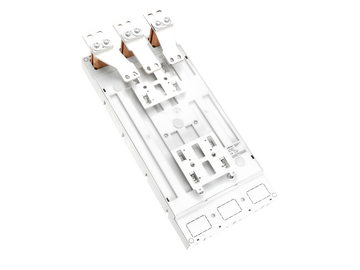

32809000A

EQUES^®185Power
busbar adapter 1440 A
300 x 652, connection top, screw connection
for: GE FK1600, Legrand DPX³ 1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
