32752000A

EQUES^®185Power
busbar adapter 1550 A
300 x 675, connection top, clamp connection
for: Socomec Sirco 1250 A (Socomec-Nr. 26003U21), Sirco 1600 A (Socomec-Nr. 26003U61)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

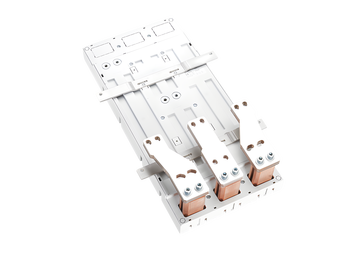

32764000A

EQUES^®185Power
busbar adapter 1500A
300 x 652, connection bottom, clamp connection
for: Socomec Sirco 1250 A (Socomec-Nr. 26003U21), Sirco 1600 A (Socomec-Nr. 26003U61)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
