01126000

earth/neutral busbar 63A
8 terminal points
protected against self-loosening
More

01127000

earth/neutral busbar 63A
12 terminal points
protected against self-loosening
More

01128000

earth/neutral busbar 63A
16 terminal points
protected against self-loosening
More

01129000

earth/neutral busbar 63A
24 terminal points
protected against self-loosening
More

01130000

earth/neutral busbar 63A
166 terminal points
protected against self-loosening
More

01926000

earth/neutral busbar 63A
6 terminal points 10mm², screw-on, 61.5 mm long
without terminal clamp
More

01927000

earth/neutral busbar 63A
12 terminal points 10mm², screw-on, 124.0 mm long
1 terminal clamp 25 mm²
More

01928000

earth/neutral busbar 63A
18 terminal points 10mm², screw-on, 186.5 mm long
2 terminal clamps 25 mm²
More

01929000

earth/neutral busbar 63A
24 terminal points 10mm², screw-on, 249.0 mm long
3 terminal clamps 25 mm²
More

01930000

earth/neutral busbar 63A
30 terminal points 10mm², screw-on, 311.5 mm long
4 terminal clamps 25 mm²
More

01931000

earth/neutral busbar 63A
36 terminal points 10mm², screw-on, 374.0 mm long
5 terminal clamps 25 mm²
More

01932000

earth/neutral busbar 63A
96 terminal points 10mm², screw-on, 1000 mm long
15 terminal clamps 25 mm²
More

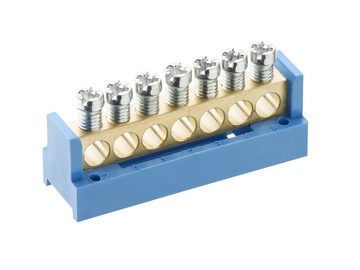

01143000

neutral terminal, blue
for bar 12 x 2
More

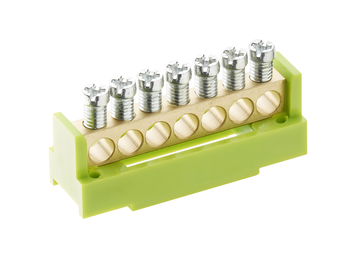

01144000

PE-terminal, green/yellow
for bar 12 x 2
More

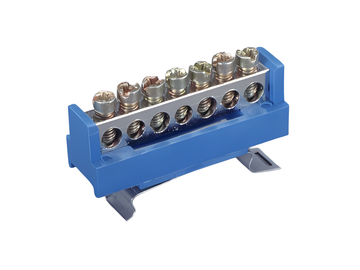

01257000

neutral terminal, blue
snap-on
More

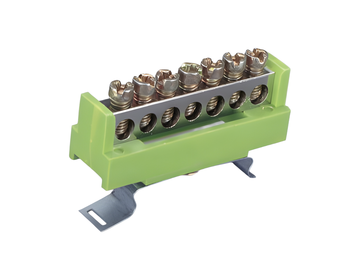

01258000

PE-terminal, green/yellow
snap-on
More
