32631000

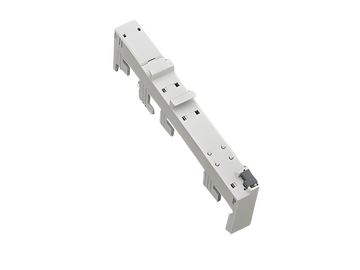

busbar component support 1-pole
1 fixed mounting rail
18 x 160, without electrical connection
for busbars: 12 x 5
More
