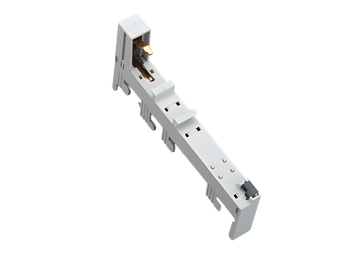

32628000

EQUES^®30Compact
busbar adapter 1-pole, 63 A
1 fixed mounting rail, for Schneider Electric iC60, iC65 and C60
18 x 160
for busbars: 12 x 5
More

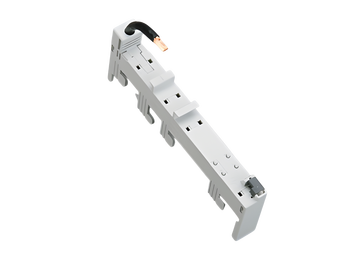

32630000

EQUES^®30Compact
busbar adapter 1-pole, 63 A
1 fixed mounting rail
18 x 160 / 10 mm²
for busbars: 12 x 5
More
