for UL feeder circuits >250V
The picture may show a similar product.
Part No.: 31264000A

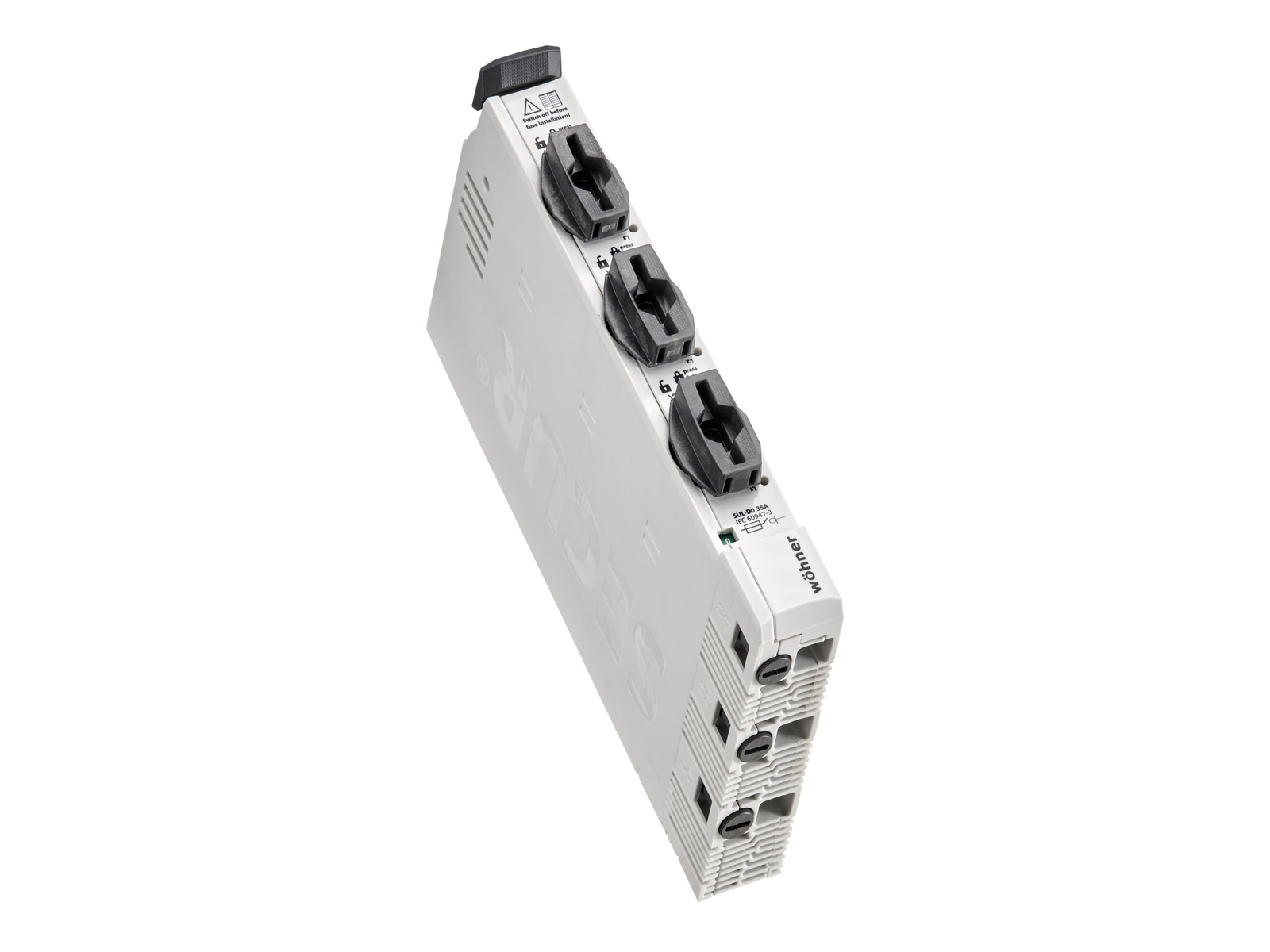

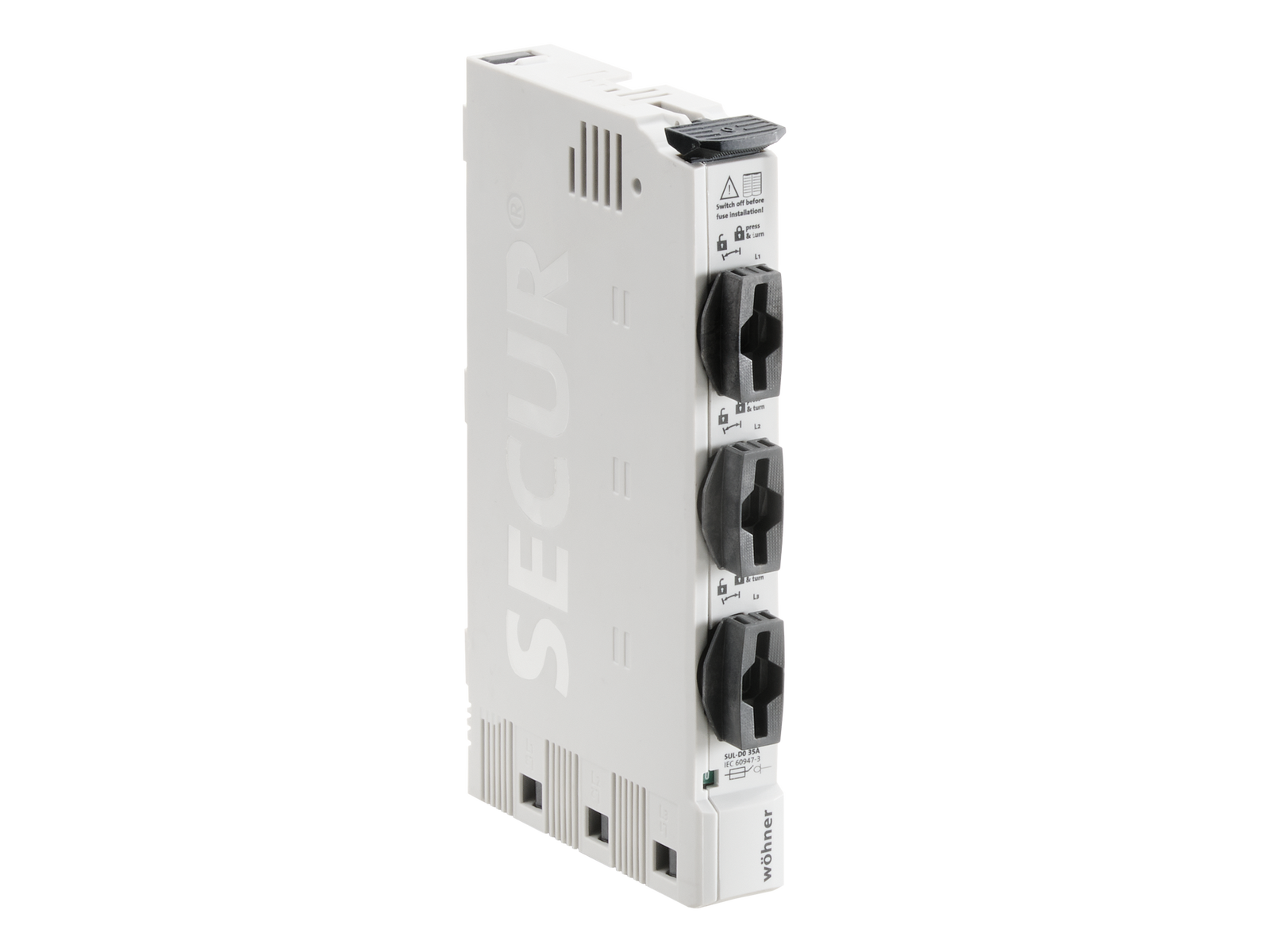

busbar mounted switch-disconnector-fuse
for fuses Class CC UL 248-4
3P
operator independent switching (snap-action mechanism)
connection bottom
coming soon
System
CrossBoard® 125A / 250A, CrossBoard® 800 A
Advantages of the product
spring terminal enables connection without tools (at first installation)
| Product group | 01 |
| Subgroup | 53 |
| pack size | 1 |
| EAN | 4021267312640 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
CCC
| for fuse links size: | 10x38 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data | |
| rated surge voltage Uimp : | 6 kV |
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
| Electrical data UL | |
| rated current (UL): | 30 A |
| rated voltage (UL) AC: | 600 V |
| Electrical data | |
| SCCR: | 200 kA |
| Mechanical data | |
| W x H x D: | 22.5 x 184 x 100 |
| weight: | 33,0 kg/100 |
| poles: | 3-pole |
| front degree of protection: | IP20 |
Type of fastening: patented click mechanism
| Terminal points | |
| spring pulley connection | |
| screw drive: | 0,8x4 |
| wire stripping: | 12 mm |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 16 mm² |
| Not suitable for aluminium cables ! | |
| min. cross-section UL: | AWG 16 |
| max. cross-section UL: | AWG 6 |
| Not suitable for aluminium cables ! | |
