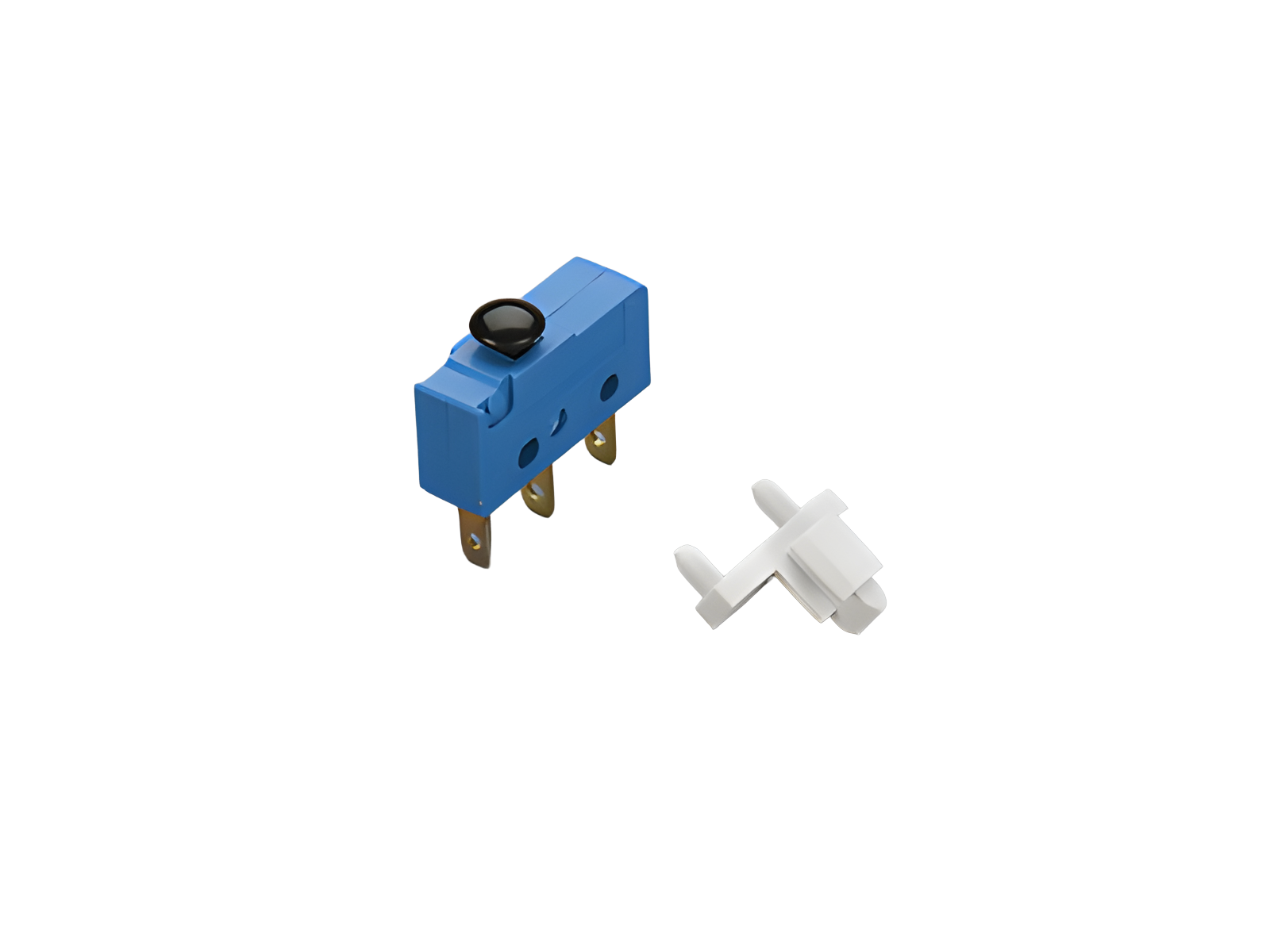

The picture may show a similar product.
Part No.: 31976 000A
pilot switch
changeover 250 V AC / 5 A, 30 V DC / 4 A
System
60Classic
| Product group | 01 |
| Subgroup | 36 |
| pack size | 1 |
| EAN | 4021267319762 |
| ETIM 5.0 | EC002936 |
| ETIM 8.0 | EC002936 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019 |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted operation temperature | 55°C |
| Mechanical data | |
| weight: | 0,7 kg/100 |
connection for flat plug DIN 46244-A, 2.8 x 0.5 mm
| Material properties | |
| halogen-free: | Yes |
|
not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
|
