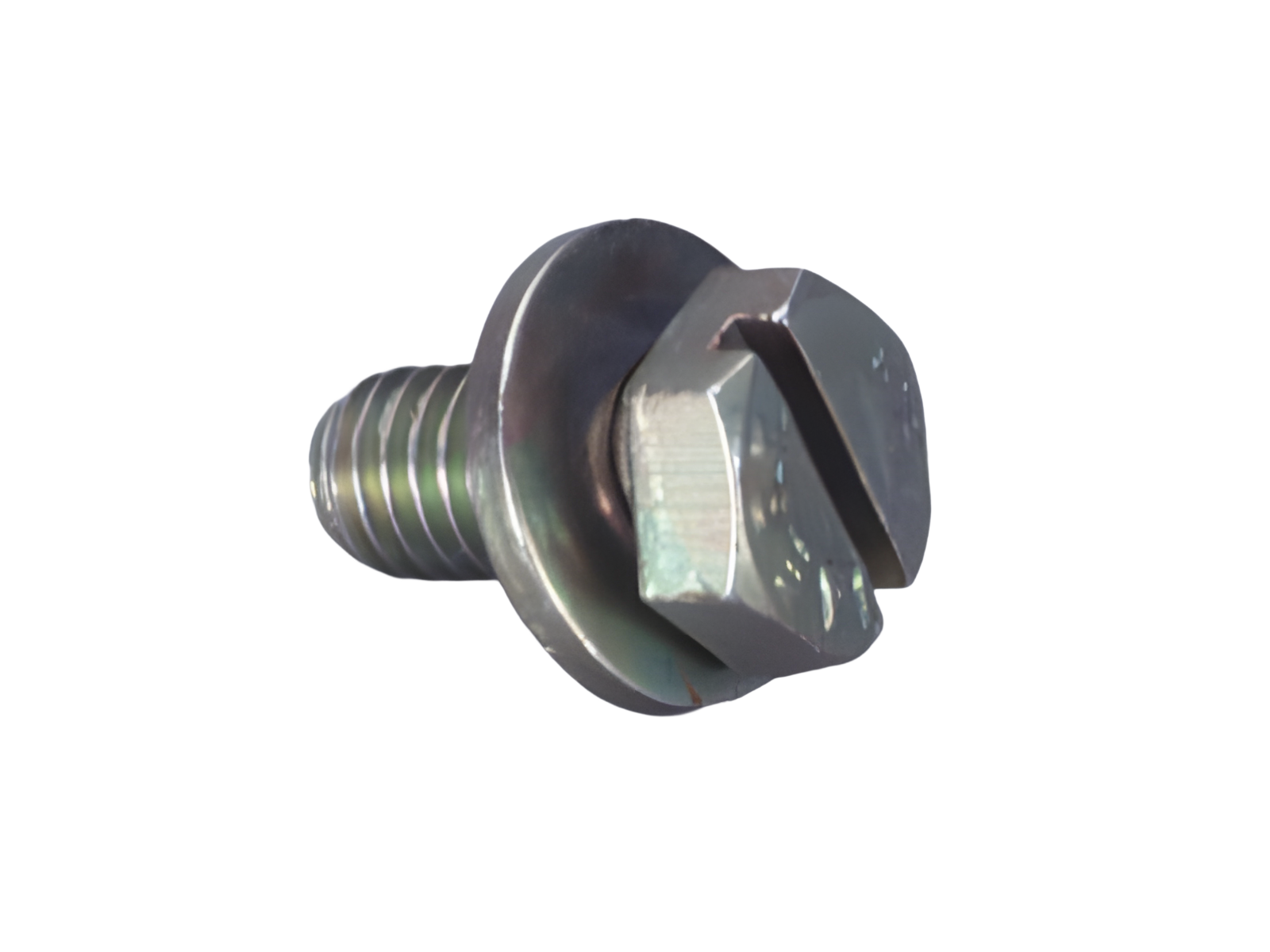

M8 screw connector (30894)

The picture may show a similar product.

Description

Part No.: 30894000

M8 screw connector

with spring washer

size 00

System

60Classic

Product group 09
Subgroup 51
pack size 3
EAN 4021267308940
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

Mechanical data
W x H x D: 15 x 15 x 25
weight: 1,4 kg/100
Terminal points
Md min.: 12,0 Nm
Md max.: 14,0 Nm
Not suitable for aluminium cables !

Application notes

Not suitable for aluminium cables !
short-circuit withstandability: determined by main product
