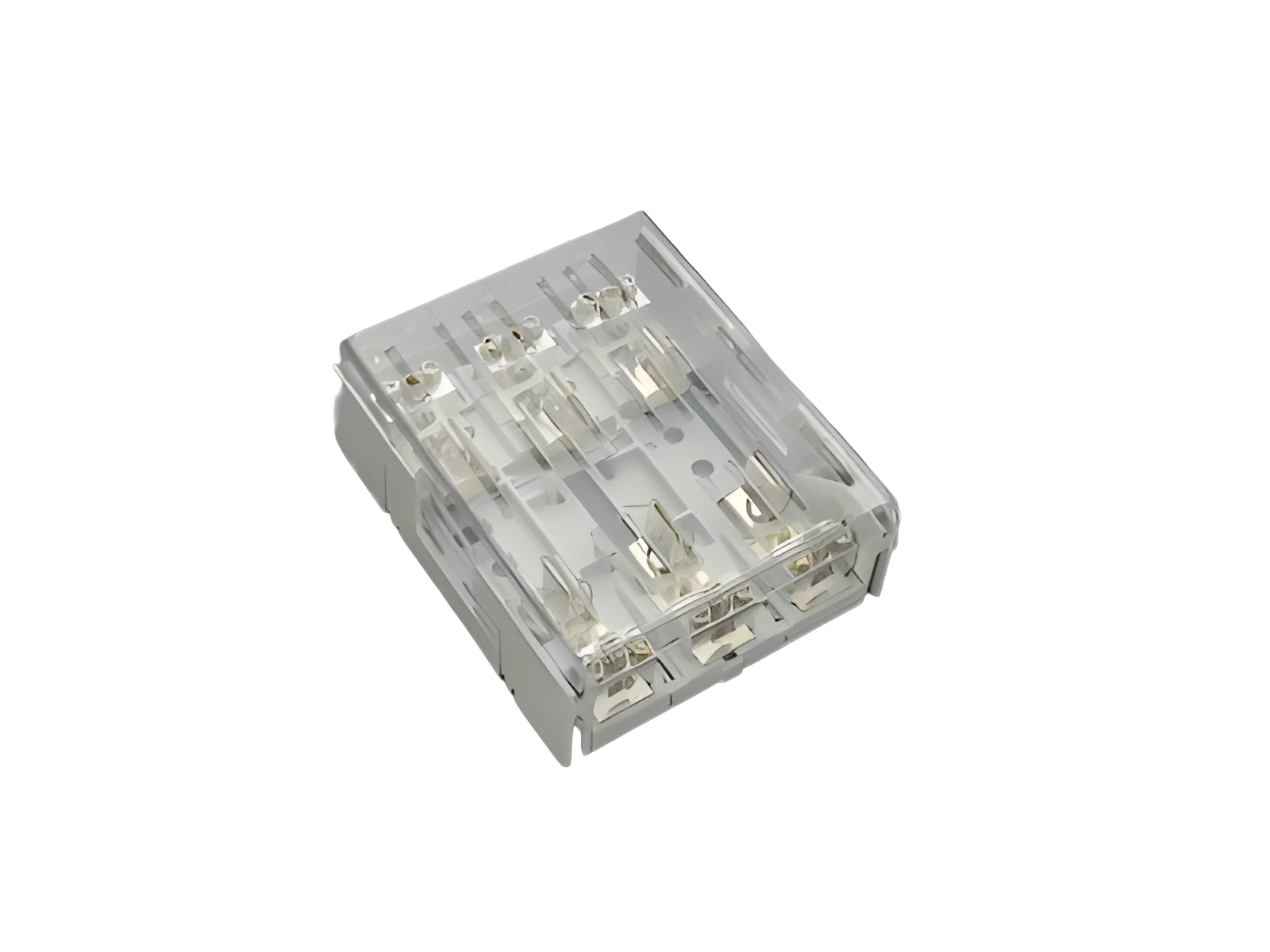

The picture may show a similar product.
Part No.: 33306000
QUADRON®Panel
holder for cylindrical fuses
Class J / 3P, terminal 70 mm²
100 A / 600 V (29 x 118)
for mounting plate
System
Panel
| Product group | 16 |
| Subgroup | 09 |
| pack size | 1 |
| EAN | 4021267333065 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002705 |
| ETIM 5.0 | EC002705 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H
UL 4248-8
UL 4248-1
Approvals
CSA , UL
for UL feeder circuits >250V
type number: JC100
UL file: E230163, UL category (for USA): IZLT https://www.ul.com
UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
| for fuse links size: | Class J 100 A |
| fuse links acc. to standard: | UL 248-8 |
| permitted power dissipation of the fuse-link: | 10 W |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system H |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 1,6 W.
(The power dissipation at full load would be 2,5 W.)
| for Class J fuses 70 - 100A as per UL 248-8 (29x118) |
| Details UL | |
| Standards | |
|
UL 4248-8
UL 4248-1 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| rated current (UL): | 100 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| rated voltage (UL) DC: | 600 V |
| for wires UL: | Cu 75°C |
| SCCR: | 200 kA |
| Mechanical data | |
| W x H x D: | 184 x 215 x 103 |
| weight: | 217,6 kg/100 |
| poles: | 3-pole |
| Mounting: | for mounting plate |
| Terminal points | |
| re: | 6 - 70 mm² |
| rm: | 6 - 70 mm² |
| f: | 6 - 70 mm² |
| f + AE: | 6 - 70 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 14,0 Nm |
| Md max.: | 16,0 Nm |
| Not suitable for aluminium cables ! | |
| for wires UL: | Cu 75°C |
| Not suitable for aluminium cables ! | |
|
Reference |
Shock protection through push-on covers. |
| permitted power dissipation of the fuse-link: | 10 W |
| for UL feeder circuits >250V | |
