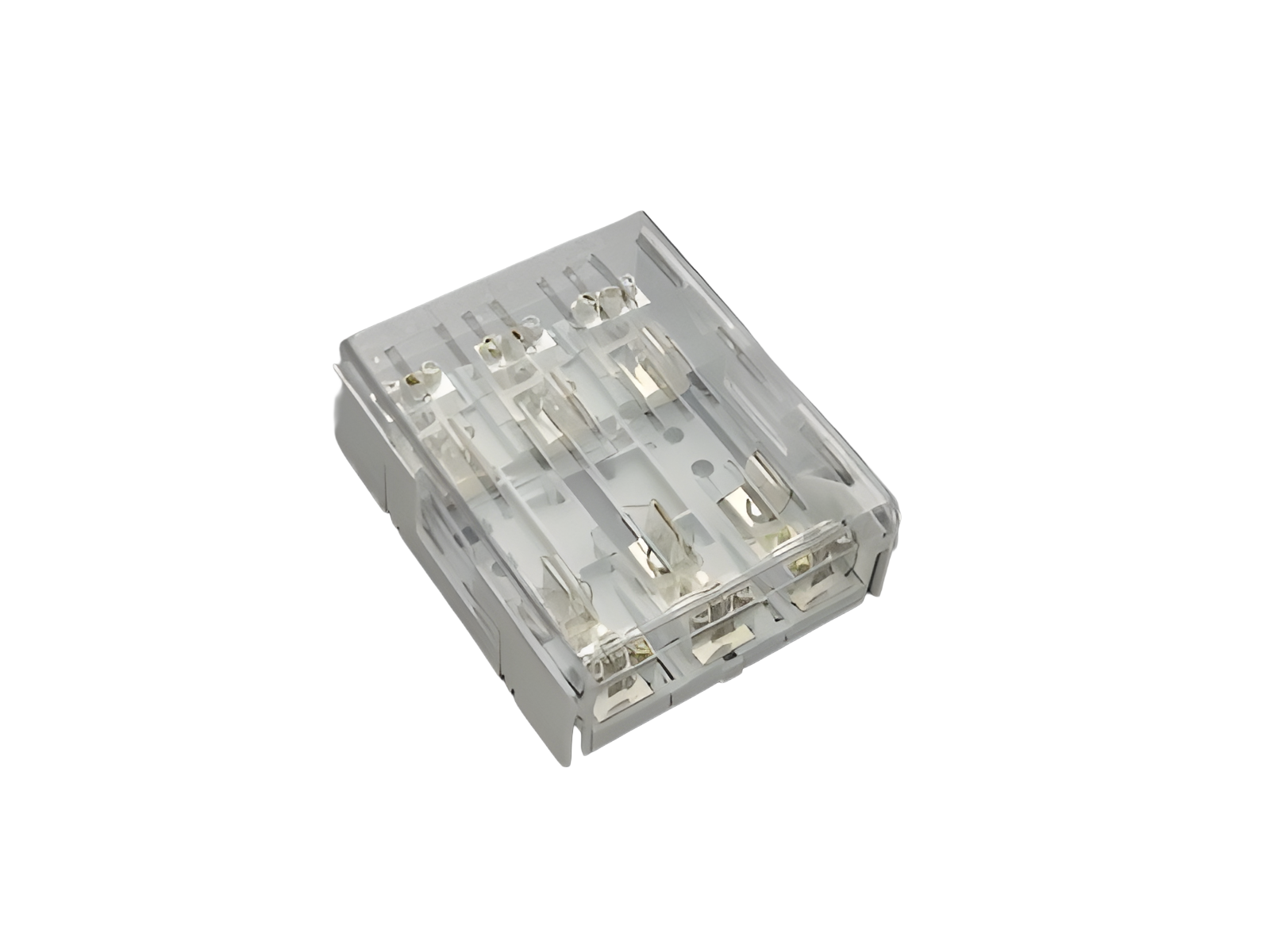

The picture may show a similar product.
订货号 33306000
QUADRON®Panel
圆筒形帽熔断器座
Class J 级 / 3 极, 连接端子 70 mm²
100 A / 600 V (29 x 118)
for mounting plate
系统
Panel
| 产品组 | 16 |
分组 |
09 |
| 包装件数 | 1 |
| EAN | 4021267333065 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002705 |
| ETIM 5.0 | EC002705 |
标准
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H
UL 4248-8
UL 4248-1
认证许可
CSA , UL
for UL feeder circuits >250V
型号: JC100
UL 文件: E230163, UL 类别 (适用美国) : IZLT https://www.ul.com
UL 文件: E230163, UL 类别 (适用加拿大) : IZLT7 https://www.ul.com
CSA 文件: 110285, CSA 等级: 3211-37 https://directories.csa-international.org
| for fuse links size: | Class J 100 A |
| fuse links acc. to standard: | UL 248-8 |
| 所使用熔断器的允许损耗功率: | 10 W |
| Details IEC | |
| 标准 | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system H |
电气数值
功率输出:
The power dissipation at a typical load of 80 % results to 1.6 W.
(The power dissipation at full load would be 2.5 W.)
| 适用J级 熔断器 70- 100A 符合 UL 248-8标准 (29x118) |
| Details UL | |
| 标准 | |
|
UL 4248-8
UL 4248-1 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| 额定电流 (UL): | 100 A |
| 额定电压 (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| 额定电压 (UL) DC: | 600 V |
| for wires UL: | Cu 75°C |
| SCCR: | 200 kA |
| 机械数值 | |
| 宽 x 高 x 厚: | 184 x 215 x 103 |
| 重量: | 217.6 kg/100 |
| 极数: | 3线 |
| Mounting: | for mounting plate |
| 连接端 | |
| re: | 6 - 70 mm² |
| rm: | 6 - 70 mm² |
| f: | 6 - 70 mm² |
| f + AE: | 6 - 70 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 14.0 Nm |
| Md max.: | 16.0 Nm |
| Not suitable for aluminium cables ! | |
| for wires UL: | Cu 75°C |
| Not suitable for aluminium cables ! | |
|
说明 |
通过可插接盖罩实现防触摸保护。 |
| 所使用熔断器的允许损耗功率: | 10 W |
| for UL feeder circuits >250V | |
