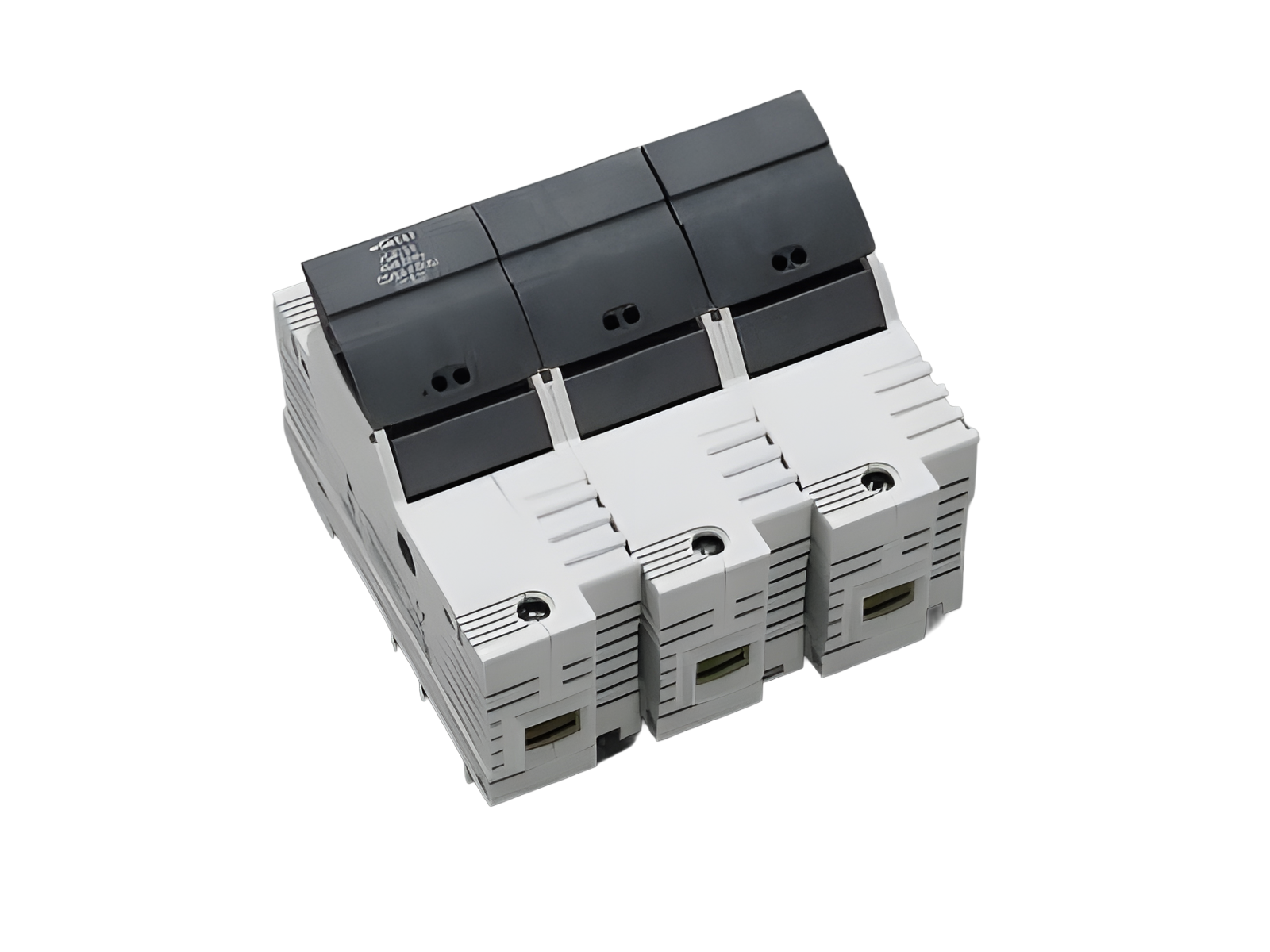

holder for cylindrical fuses (31922)

The picture may show a similar product.

Description

Part No.: 31922 000

AMBUS®Panel

holder for cylindrical fuses

Class J / 3P, box terminal 50 mm²

60 A / 600 V (27x60)

for mounting rail

System

Panel

Advantages of the product

large clamping range, also for two identical conductors (adjacent)
holder for label

Product group 16
Subgroup 06
pack size 2
EAN 4021267319229
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002705
ETIM 5.0 EC002705

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H

UL 4248-8

UL 4248-1

Approvals

CSA , UL

for UL feeder circuits >250V

type number: AJC60

UL file: E230163, UL category (for USA): IZLT https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com

CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org

Technical data

for fuse links size: Class J 60 A
fuse links acc. to standard: UL 248-8
permitted power dissipation of the fuse-link: 7 W
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 2,5 W.

(The power dissipation at full load would be 3,9 W.)

for Class J fuses 35 - 60A as per UL 248-8 (27x60)
Details UL
Standards
UL 4248-8
UL 4248-1
for UL feeder circuits >250V
suitable for field-installed conductors
Electrical data UL
rated current (UL): 60 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 600 V
for wires UL: Cu 75°C
SCCR: 200 kA
Mechanical data
W x H x D: 120 x 118 x 82
weight: 55,9 kg/100
poles: 3-pole
Mounting: for mounting rail
degree of protection: IP20
front degree of protection: IP20
Terminal points
Not suitable for aluminium cables !

min. cross-section UL: AWG 14
max. cross-section UL: AWG 1/0
for wires UL: Cu 75°C


for applications acc. to IEC / EN :
1 wire : Cu 6 - 50 mm², Md 3,5 - 4,0 Nm / 31 - 35 lb.in.
2 wires (of same cross-section) : Cu 6 - 16 mm², Md 3,5 - 4,0 Nm / 31 - 35 lb.in.
flexible cables, directly or with wire-end ferrule
(flexible cables of max. cross-section may not fit when using wire-end ferrule)

for applications acc. to UL / CSA :
only Cu cables acc. to UL 486E
1 wire : AWG 14 - AWG 1, Class C, Md 4,0 Nm / 35 lb.in.
2 wires (of identical cross-section) :  AWG 14 - AWG 6, Class C, Md 4,0 Nm / 35 lb.in.

Application notes

Not suitable for aluminium cables !
permitted power dissipation of the fuse-link: 7 W
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

fuse links

31360 000
fuse link 35 A
-Mersen-
600 V AC, time delay
Class J, 27x60
More

31361 000
fuse link 40 A
-Mersen-
600 V AC, time delay
Class J, 27x60
More

31362 000
fuse link 45 A
-Mersen-
600 V AC, time delay
Class J, 27x60
More

31363 000
fuse link 50 A
-Mersen-
600 V AC, time delay
Class J, 27x60
More

31364 000
fuse link 60 A
-Mersen-
600 V AC, time delay
Class J, 27x60
More

31511 000A
fuse link 35 A
-Mersen-
600 V AC, fast acting
Class J, 27x60
More

31512 000A
fuse link 40 A
-Mersen-
600 V AC, fast acting
Class J, 27x60
More

31514 000A
fuse link 50 A
-Mersen-
600 V AC, fast acting
Class J, 27x60
More

31515 000A
fuse link 60 A
-Mersen-
600 V AC, fast acting
Class J, 27x60
More

Similar products

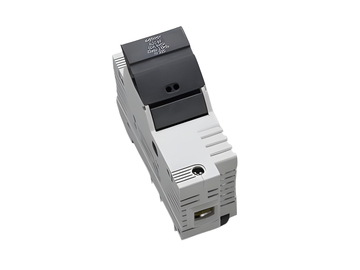

31920 000
