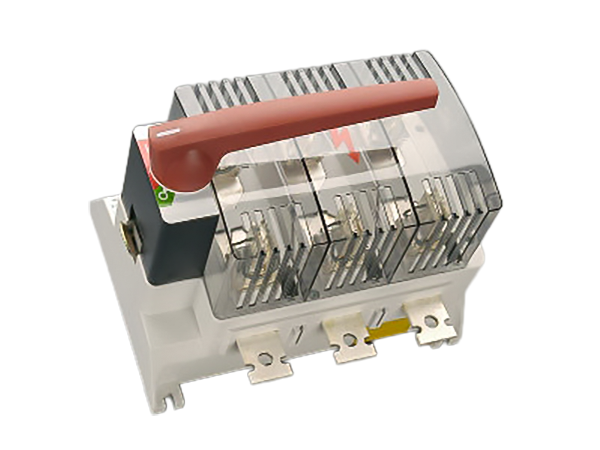

The picture may show a similar product.
Part No.: 33362000
CAPUS®Panel
switch disconnector with fuses, 3-pole
screw M12, red handle
size 3
for mounting plate
System
Panel
Product group | 15 |
Subgroup | 12 |
pack size | 1 |
EAN | 4021267333621 |
ECLASS 6.1 | 27371401 |
ECLASS 7.1 | 27371401 |
ETIM 4.0 | EC001040 |
ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB)
type number: LTS-F630
for fuse links size: | NH 3 |
fuse links acc. to standard: | IEC / HD 60269-2 |
permitted power dissipation of the fuse-link: | 48 W |
Details IEC | |
Standards | |
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data IEC | |
Rated current (IEC): | 630 A |
rated voltage (IEC) AC: | 690 V |
rated isolation voltage Ui AC: | 1000 V |
rated surge voltage Uimp : | 12 kV |
Utilisation category AC (IEC 60947-3) : | AC-23B (690V) AC-22B (690V) AC-21B (690V) |
cond. short-circuit current with fuses (AC): | 80 kA / 690 V |
approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 171,5 W.
(The power dissipation at full load would be 268,0 W.)
Mechanical data | |
W x H x D: | 330 x 290 x 302 |
weight: | 1280,0 kg/100 |
poles: | 3-pole |
Mounting: | for mounting plate |
Terminal points | |
Not suitable for aluminium cables ! | |
screw M12 : |
Not suitable for aluminium cables ! | |
permitted power dissipation of the fuse-link: | 48 W |
