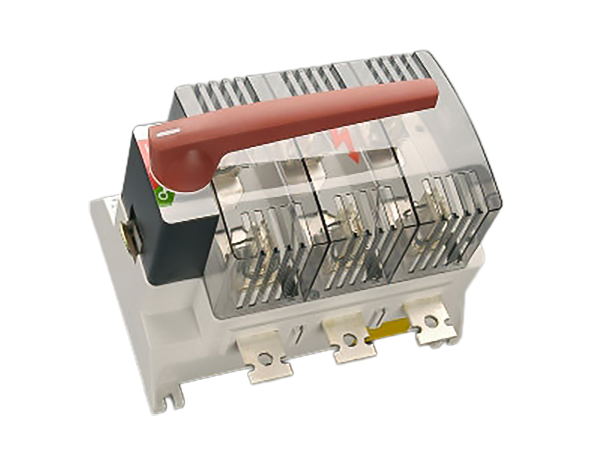

switch disconnector with fuses, 3-pole

The picture may show a similar product.

Description

Part No.: 33362 000

CAPUS Panel

switch disconnector with fuses, 3-pole

screw M12, red handle

NH 3, 630 A

for mounting plate

System

Panel

Product group	15
Subgroup	12

pack size	1
EAN	4021267333621

ECLASS 14.0	27371401
ETIM 5.0	EC001040
ETIM 8.0	EC001040
ETIM 10.0	EC001040

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Approvals

IEC (CB)

type number: LTS-F630

EAC Type: NH

Technical data

for fuse links size:	NH 3
fuse links acc. to standard:	IEC / HD 60269-2
permitted power dissipation of the fuse-link:	48 W

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Electrical data IEC
rated current (IEC):	630 A
rated voltage (IEC) AC:	690 V

rated isolation voltage U_i AC:	1000 V
rated surge voltage U_imp :	12 kV

Utilisation category AC (IEC 60947-3) :

AC-23 B (690V)
AC-22 B (690V)
AC-21 B (690V)

cond. short-circuit current with fuses (AC):	80 kA / 690 V
approved wth fuse links of operation class:	gG

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 171.5 W.

(The power dissipation at full load would be 268.0 W.)

Mechanical data
W x H x D:	330 x 290 x 302
weight:	1280.0 kg/100
poles:	3-pole
Mounting:	for mounting plate

Terminal points
screw connection
M12
Md min.:	36.0 Nm
Md max.:	44.0 Nm
Not suitable for aluminium cables !
lam. Cu width:	20 - 40 mm
lam. Cu thickness:	1 - 10 mm

Material properties
halogen-free:	Yes

Application notes

Not suitable for aluminium cables !
Device delivered without fuses

permitted power dissipation of the fuse-link:	48 W

Links (Prices, CAD data)

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD data WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| Dimensioned drawing #2

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

connection accessories

33165 000
clamp connector for Cu cables
150 - 300 mm²
for: QCB-NH2, LTS-F 400, LTS 630
More

covers

33352 000
connection space cover
for covering all connections, dark grey
LTS-800, LTS-F 630
More

further accessories

33347 000
pilot switch
1 n/c + 1 n/o, plug connectors 6.3 x 0.8
LTS, LTS-F
More

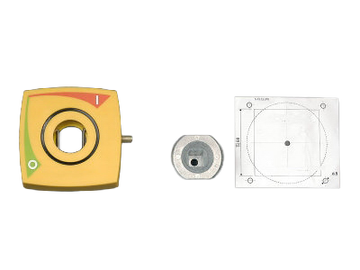

33349 000
door coupling rotary drive
yellow-red, without handle
with door interlock, for padlocks
for: LTS-800, LTS-F 630
More

33381 000
extension shaft, 550 mm long
LTS-800, LTS-F 630
for: LTS-800, LTS-F630
More
