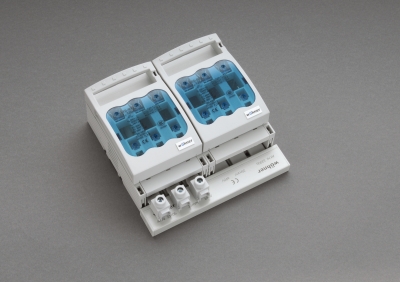

The picture may show a similar product.
Part No.: 33906000
comb-type busbar, 3-pole, for 2 NH fuse switch disconnectors
35 mm²
for 33217
| Product group | 09 |
| Subgroup | 51 |
| pack size | 4 |
| EAN | 4021267339067 |
| catalog page | 2020 : 6.14 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC000215 |
| ETIM 5.0 | EC000215 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
EAC
EAC Type: AC-A
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 5,1 W.
(The power dissipation at full load would be 7,9 W.)
| Mechanical data | |
| W x H x D: | 180 x 15 x 32 |
| weight: | 23,0 kg/100 |
| cross-section: | 35 mm² |
