comb-type busbar, 3-pole, for 2 NH fuse switch disconnectors (33906)

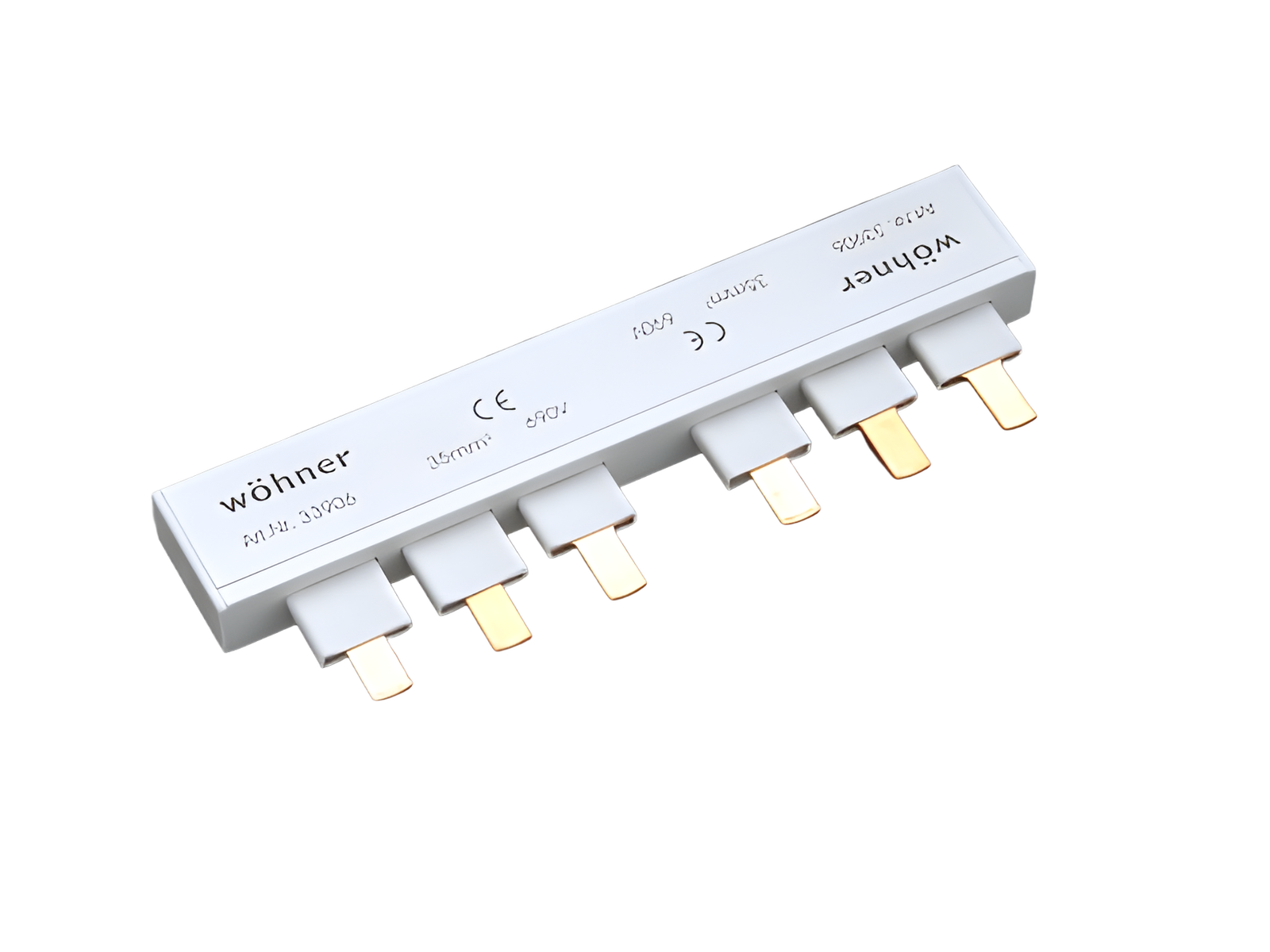

The picture may show a similar product.

Description

Part No.: 33906000

comb-type busbar, 3-pole, for 2 NH fuse switch disconnectors

35 mm²

for 33217

Product group 09
Subgroup 51
pack size 4
EAN 4021267339067
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC000215
ETIM 5.0 EC000215

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 5,1 W.

(The power dissipation at full load would be 7,9 W.)

Mechanical data
W x H x D: 180 x 15 x 32
weight: 23,0 kg/100
cross-section: 35 mm²

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33217000
NH fuse switch-disconnector size 000, 125 A, panel mounting
box terminal
More

https://pim.woehner.de/EN/DE/1000047549

Find your contact

to the contact site
