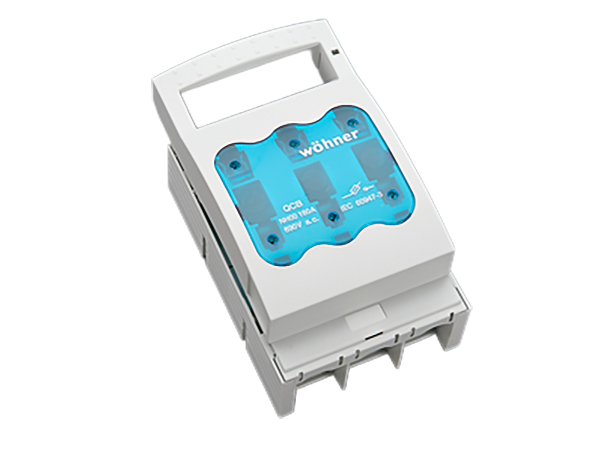

NH fuse switch-disconnector size 00, 160 A, panel mounting (33222)

The picture may show a similar product.

Description

Part No.: 33222000

QUADRON^®Panel

NH fuse switch-disconnector size 00, 160 A, panel mounting

screw M8, with short protection cover

for mounting plate

System

Panel

Advantages of the product

For safe connection of the leads, the shock protection is split into 2. Self-closing inspection holes are available in the cover.

Product group	09
Subgroup	03

pack size	1
EAN	4021267332228

ECLASS 6.1	27142108
ECLASS 7.1	27142108
ETIM 4.0	EC001040
ETIM 5.0	EC001040

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

UL 4248-1

Approvals

IEC (CB) , UL , CCC , DNV GL

for UL feeder circuits >250V

type number: LTS-00

UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com

CCC certificate: 2004010302117250

Technical data

for fuse links size:	NH 000, NH 00
fuse links acc. to standard:	IEC / HD 60269-2
permitted power dissipation of the fuse-link:	12 W
requirements for contact parts:	Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Electrical data IEC
rated current (IEC):	160 A
rated voltage (IEC) AC:	690 V

rated voltage (IEC) DC:

440 V

rated isolation voltage U_i AC:	800 V
rated isolation voltage U_i DC:	500 V
rated surge voltage U_imp :	6 kV

Utilisation category AC (IEC 60947-3) :	AC-23B (400V) AC-23B (500V/125A) AC-22B (690V) AC-21B (690V) AC-20B (1000V) at pollution degree 2 visible information required if used at more than 690V AC: do not switch under load
Utilisation category DC (IEC 60947-3) :	DC specifications: 2 current paths (L1,L3) in series DC-22B (220V) DC-22B (440V/125A) DC-21B (440V) DC-20B (1000V) at pollution degree 2 visible information required if used at more than 440V DC: do not switch under load

cond. short-circuit current with fuses (AC):	50 kA / 690 V
approved wth fuse links of operation class:	gG

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 4,5 W.

(The power dissipation at full load would be 7,0 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) DC:

800 V

A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

In accordance with the specified AC and DC switching properties and in consideration of the overload conditions, certain distances to earthed metal parts are to be adhered to. Further information on request. When used as a disconnector, the spacings can be ignored.
Degree of protection IP30 at front, degree of protection near terminal depends on installation

Details UL
Standards
UL 4248-1

for UL feeder circuits >250V

Electrical data UL
rated current (UL):	160 A
rated voltage (UL) AC:	600 V
rated frequency (UL):	50 / 60 Hz

SCCR:

100 kA

Mechanical data
W x H x D:	106 x 151 x 83
weight:	71,9 kg/100
poles:	3-pole
Mounting:	for mounting plate

front degree of protection:

IP30

Terminal points
screw connection
M8
screw drive:	SW13
Md min.:	8,0 Nm
Md max.:	10,0 Nm
Not suitable for aluminium cables !

Accessories: Clamp connection: Cu 1.5-70mm² s(r), f+AE; lam. Cu 12x1-10; 3Nm torque single wedge clamp terminal: Cu, Al* 16-70mm² s(r), s(s), f+AE; 3Nm torque tunnel terminal 3x Cu 1.5-16mm² s(r), f+AE; 3Nm torque *Connections not maintenance-free if aluminium conductors are used.

Application notes

Not suitable for aluminium cables !
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

permitted power dissipation of the fuse-link:	12 W
requirements for contact parts:	Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

for UL feeder circuits >250V
