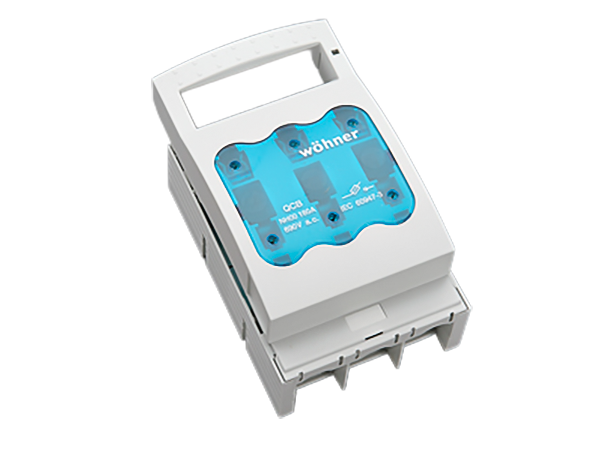

chave seccion. de fusível NH tam. 00, 160 A, montagem em painel (33222)

A imagem pode mostrar um produto similar.

Descrição

Código da peça: 33222000

QUADRON®Panel

chave seccion. de fusível NH tam. 00, 160 A, montagem em painel

parafuso M8, com curta cobertura de proteção

para montagem em placa

Sistema

Panel

Vantagens do produto

For safe connection of the leads, the shock protection is split into 2. Self-closing inspection holes are available in the cover.

Grupo de produto 09
Subgroup 03
Unidade por pacote 1
EAN 4021267332228
ECLASS 6.1 27142108
ECLASS 7.1 27142108
ETIM 4.0 EC001040
ETIM 5.0 EC001040

Aprovações

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

UL 4248-1

Approvals

IEC (CB) , UL , CCC , DNV GL

for UL feeder circuits >250V

Número de tipo: LTS-00

UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com

CCC certificate: 2004010302117250

Dados técnicos

for fuse links size: NH 000, NH 00
fuse links acc. to standard: IEC / HD 60269-2
permitted power dissipation of the fuse-link: 12 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
Dados IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Dados elétricos IEC
Corrente de medição (IEC): 160 A
Tensão de medição (IEC) AC: 690 V
Tensão de medição (IEC) DC: 440 V
Tensão nominal de isolamento: 800 V
rated isolation voltage Ui DC: 500 V
Tensão suportável nominal de impulso Uimp: 6 kV
Utilisation category AC (IEC 60947-3) : AC-23B (400V)
AC-23B (500V/125A)
AC-22B (690V)
AC-21B (690V)
AC-20B (1000V) at pollution degree 2

visible information required if used at more than 690V AC: do not switch under load
Utilisation category DC (IEC 60947-3) : DC specifications: 2 current paths (L1,L3) in series
DC-22B (220V)
DC-22B (440V/125A)
DC-21B (440V)
DC-20B (1000V) at pollution degree 2

visible information required if used at more than 440V DC: do not switch under load
cond. short-circuit current with fuses (AC): 50 kA / 690 V
approved wth fuse links of operation class: gG

Dissipação de energia do artigo:

A dissipação de energia em uma carga de 80% resulta em 4,5 W.

(A dissipação de energia em sua carga máxima seria 7,0 W.)

Dados adicionais IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
tensão máxima IEC DC: 800 V
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.
In accordance with the specified AC and DC switching properties and in consideration of the overload conditions, certain distances to earthed metal parts are to be adhered to. Further information on request.
When used as a disconnector, the spacings can be ignored.
Degree of protection IP30 at front, degree of protection near terminal depends on installation
Dados UL
Standards
UL 4248-1
for UL feeder circuits >250V
Dados electricos UL
corrente nominal (UL): 160 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
SCCR: 100 kA
Dados mecânicos
L x A x P: 106 x 151 x 83
Peso: 71,9 kg/100
Polaridade: 3 polos
Montagem: para montagem em placa
front degree of protection: IP30
pontos terminais
screw connection
M8
screw drive: SW13
Md min.: 8,0 Nm
Md max.: 10,0 Nm
Not suitable for aluminium cables !


Accessories:
Clamp connection:  Cu 1.5-70mm² s(r), f+AE; lam. Cu 12x1-10; 3Nm torque
single wedge clamp terminal: Cu, Al* 16-70mm² s(r), s(s), f+AE; 3Nm torque
tunnel terminal 3x Cu 1.5-16mm² s(r), f+AE; 3Nm torque

*Connections not maintenance-free if aluminium conductors are used.

Instruções de Aplicação

Not suitable for aluminium cables !
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.
permitted power dissipation of the fuse-link: 12 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
for UL feeder circuits >250V

Links

Dados mestre e visões gerais de artigos

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Esboço dimensionado

| EU declaration of conformity

| Descrição do produto (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Acessórios

01182000
régua de terminais para conexão por parafuso M8
1x 2.5 - 16 mm² + 2x 2.5 - 25 mm²
NH 00
Mais

03727000
conexão tipo grampo
1.5 - 70 mm²
tamanho 00
Mais

03849000
bloqueio da tampa
para fio de selagem
Tamanho 00
Mais

33156000
interruptor de sinalização
comutador 250 V AC / 5 A, 30 V DC / 4 A
Mais

33193000
kit de montagem rápida
para 2 trilhos de montagem, distância central dos trilhos 125 mm ou 150 mm
tamanho 00
Mais

33223000
cobertura para espaço de conexão
tamanho 00
para: 33221, 33222
Mais

33224000
terminal prisma, único, para cabos em Cu
16 - 70 mm²
NH 00
Mais

33225000
moldura de  acabamento, única
143 x 210, para 33221, 33222
tamanho 00
Mais
