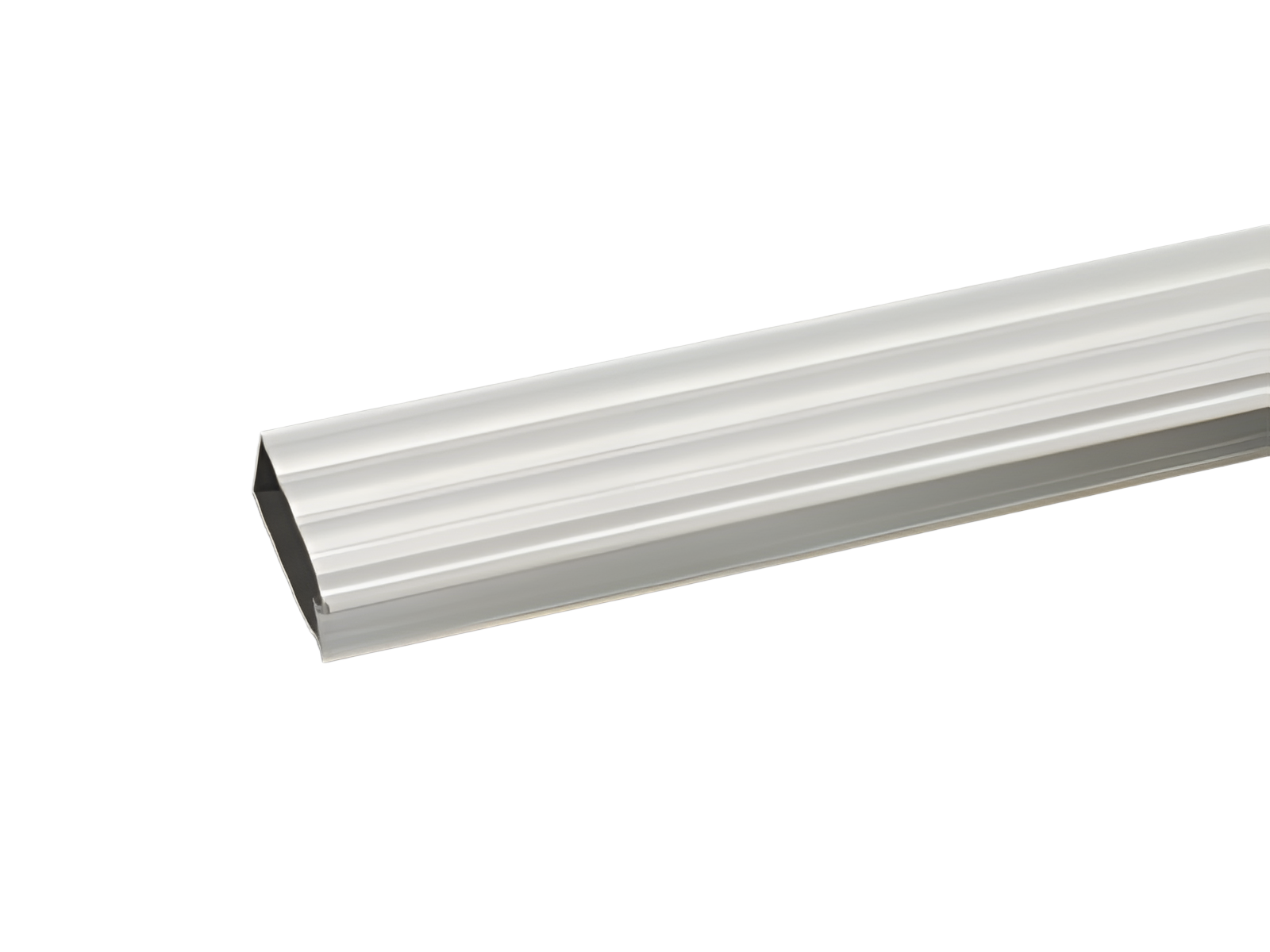

busbar cover (01245)

The picture may show a similar product.

Description

Part No.: 01245000

busbar cover

for 12 - 30 x 10 busbar, 1 m long

touch protection cover

System

60Classic, 185Power, 30Compact 3P, centre feed unit, 100Energy

Product group 06
Subgroup 27
pack size 10
EAN 4021267012458
ECLASS 6.1 27370390
ECLASS 7.1 27142190
ETIM 4.0 EC002270
ETIM 5.0 EC002270

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

CSA , UL , DNV GL

for UL feeder circuits >250V

type number: C30x10-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Details UL
Standards
UL 508
for UL feeder circuits >250V
Mechanical data
W x H x D: 1000 x 40 x 14
weight: 10,1 kg/100

Application notes

Reference

When processing and using the plastic sections, avoid contact with oils, greases and similar chemicals.

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
for UL feeder circuits >250V

Links

Downloads

Usage

01648000
busbar 12 x 10
length 3.00 m, tinned
More

01140000
busbar 20 x 10
length 3.60 m, tinned
More

01204000
busbar 30 x 10
length 3.60 m, tinned
More

01624000
busbar 20 x 10
length 2.40 m, tinned
More

01623000
busbar 12 x 10
length 2.40 m, tinned
More

01625000
busbar 30 x 10
length 2.40 m, tinned
More
