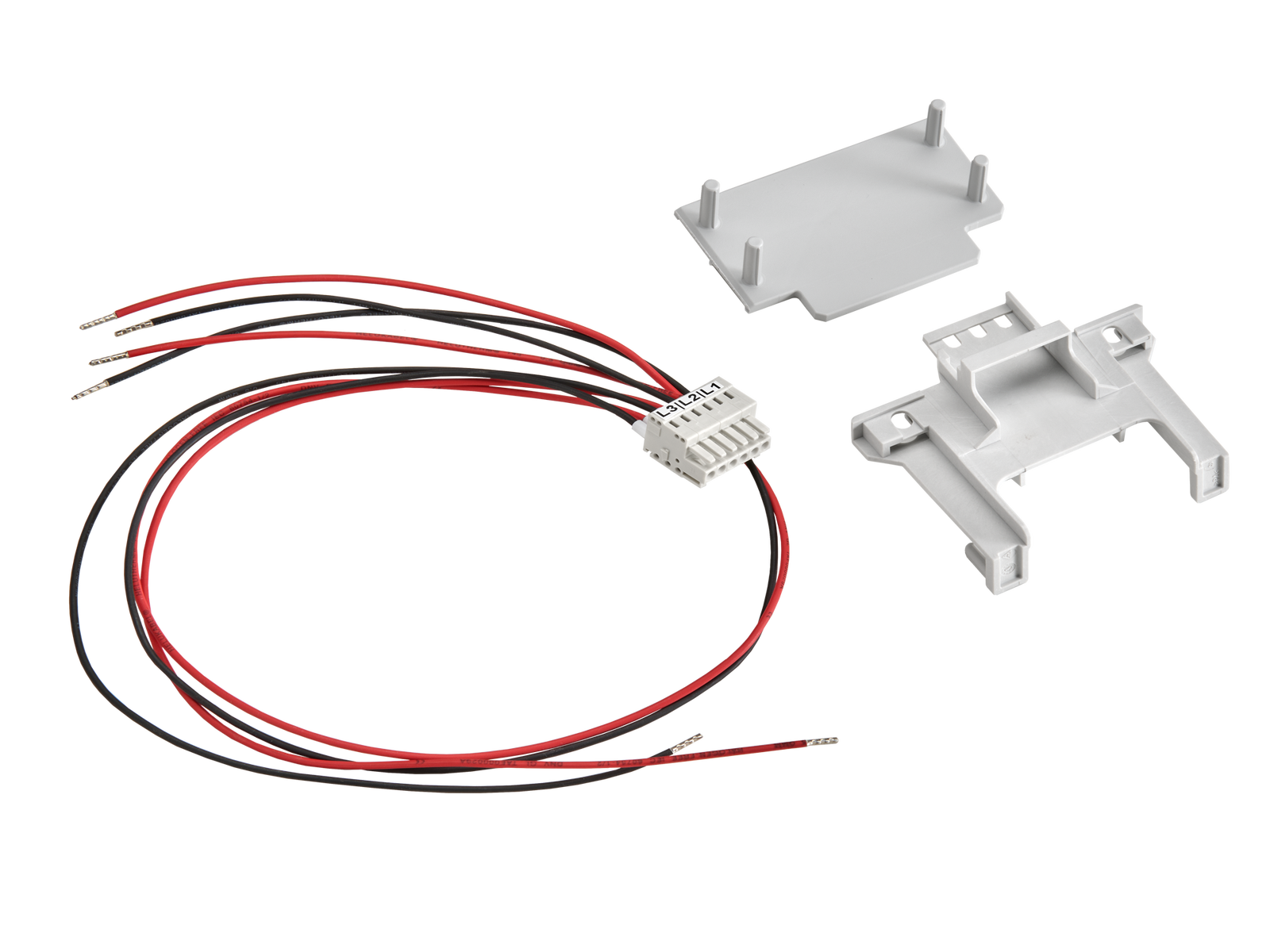

Connection kit LTL NH1-3 for RJ12 cable (37902)

The picture may show a similar product.

Description

Part No.: 37902 000A

Connection kit LTL NH1-3 for RJ12 cable

spring strip with 6 x 0.5 mm² cables

for internal wiring of the transformers and connection of the RJ12 cable

coming soon

Product group 12
Subgroup 70
pack size 1
EAN 4021267379025
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

Mechanical data
weight: 2,8 kg/100

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF) - draft

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf) - draft

| Text for specification - standard version (*.rtf) - draft

Usage

37702 000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable
screw M12
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37717 000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
screw M12
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
NEW
More

37577 000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
V-clamp 50-300 mm²
terminal body steel, pressure piece steel
prewired with 3x measuring transformers 250 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37532 000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable
V-clamp 50-300 mm²
terminal body alu, pressure piece brass, XL variant
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37536 000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
V-clamp 50-300mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 250 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37538 000A
QUADRON®185Power
in-line fuse switch-disconnector 600 A
size 3, 1-pole switchable
V-clamp 50-300 mm²
terminal body alu, pressure piece brass, XL variant
prewired with 3x measuring transformers 600 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37533 000A
QUADRON®185Power
in-line fuse switch-disconnector 600 A
size 3, 3-pole switchable
V-clamp 50-300 mm²
terminal body alu, pressure piece brass, XL variant
prewired with 3x measuring transformers 600 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37531 000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
V-clamp 50-300 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 250 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37526 000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
V-clamp 35-240 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 250 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
NEW
More

37578 000B
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
V-clamp 50-300 mm²
terminal body steel, pressure piece steel
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37537 000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
V-clamp 50-300 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
NEW
More

37578 000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
V-clamp 50-300 mm²
terminal body steel, pressure piece steel
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
NEW
More

37527 000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
V-clamp 35-240 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
NEW
More
