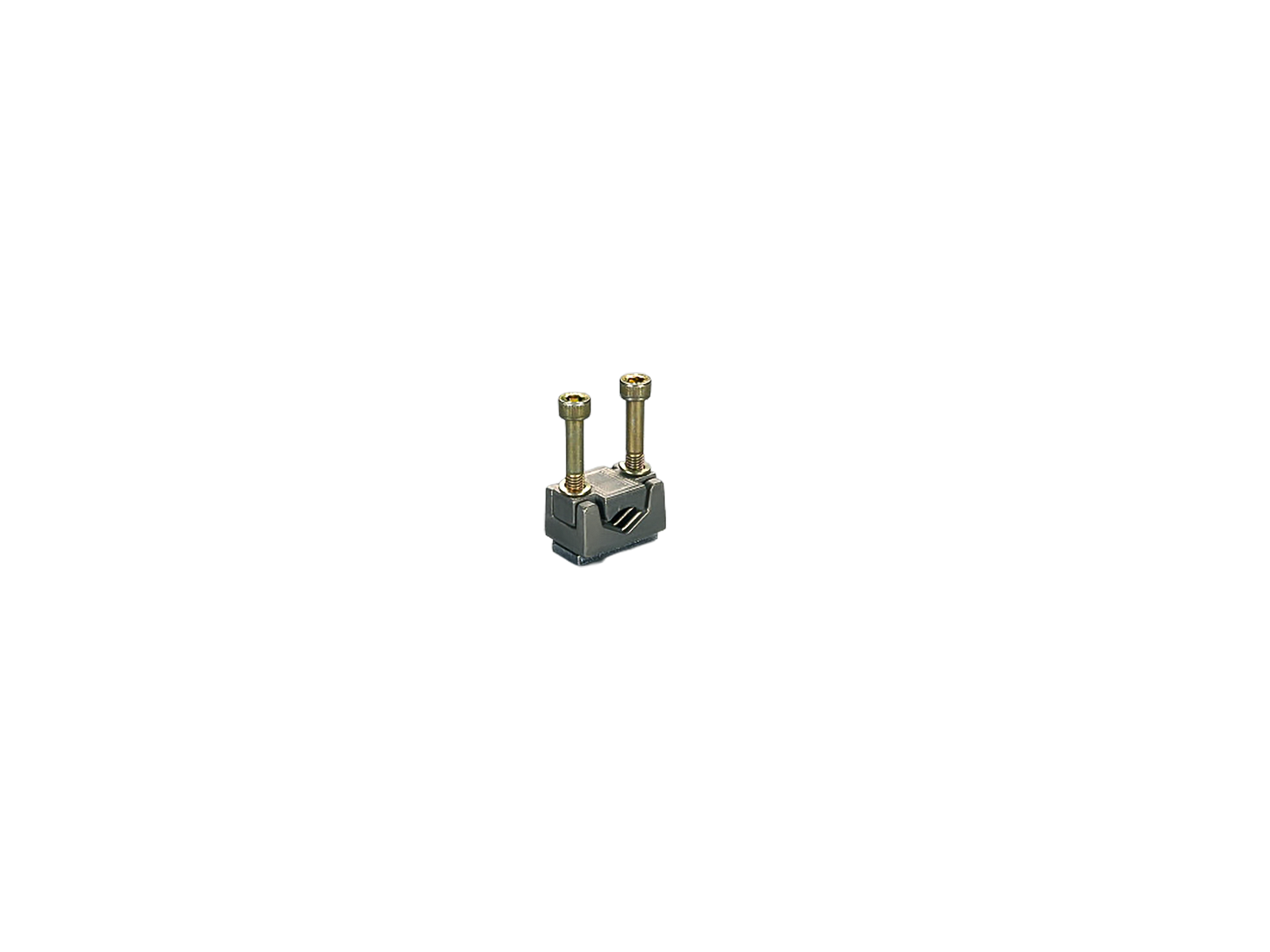

wedge clamp terminal, single,  for Cu and Al cond. (33365)

The picture may show a similar product.

Description

Part No.: 33365000

wedge clamp terminal, single,  for Cu and Al cond.

70 - 120 mm²

for LTS 250

BPE-200

Product group 14
Subgroup 51
pack size 3
EAN 4021267333652
ECLASS 6.1 27371492
ECLASS 7.1 27371492
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 6,7 kg/100
Terminal points
min. cross-section: 70 mm²
max. cross-section: 120 mm²
Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.


70 – 120

Application notes

Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.
short-circuit withstandability: determined by main product

Links

Downloads

Usage

33355000
CAPUS®Panel
switch-disconnector 3-pole
screw M10, red handle
250 A
More

33333000
CAPUS®Panel
switch-disconnector 3-pole
screw M10, graphite-grey handle
250 A
More
