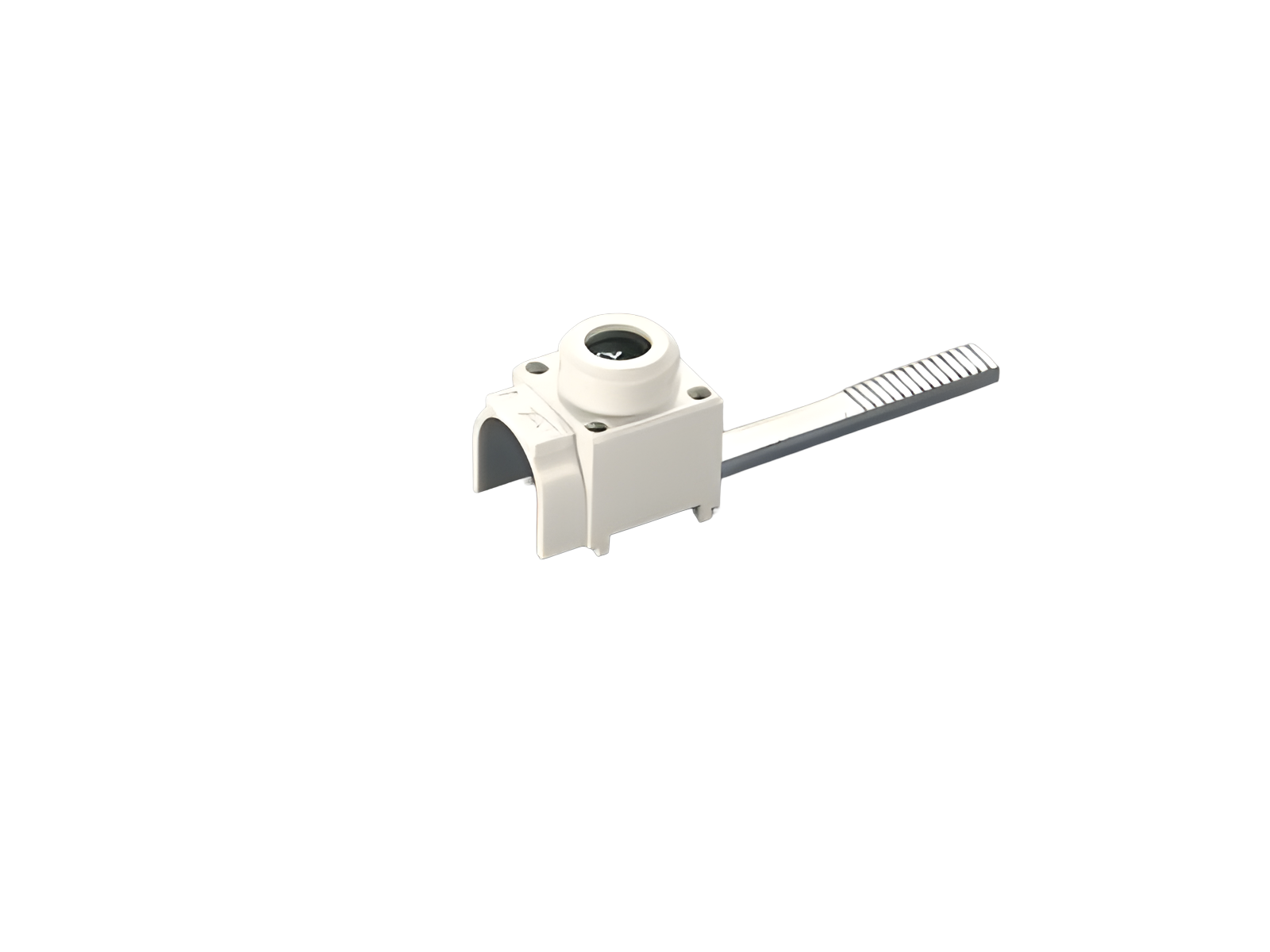

connection terminal, front connection (31157)

The picture may show a similar product.

Description

Part No.: 31157 000

connection terminal, front connection

6 - 25 mm²

for 31101, 31102

Product group 07
Subgroup 26
pack size 50
EAN 4021267311575
ECLASS 6.1 27371390
ECLASS 7.1 27141146
ETIM 4.0 EC000001
ETIM 5.0 EC000001

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated current (IEC): 80 A
rated voltage (IEC) AC: 690 V
rated surge voltage Uimp : 4 kV

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC: 690 V
max. permitted voltage (IEC) DC: 1000 V
Mechanical data
W x H x D: 13 x 18 x 17
weight: 1,2 kg/100
Terminal points
min. cross-section: 6 mm²
max. cross-section: 25 mm²
Not suitable for aluminium cables !


6 - 25 mm² round, solid and stranded
4 - 16 mm² flexible with wire-end ferrule
Md 2.5 Nm
max. connection diameter 6.5 mm

Application notes

Not suitable for aluminium cables !
The insulation performance of the article depends on the installation conditions.

Recommended stripping of the insulation on the connection lead approx. 11mm
