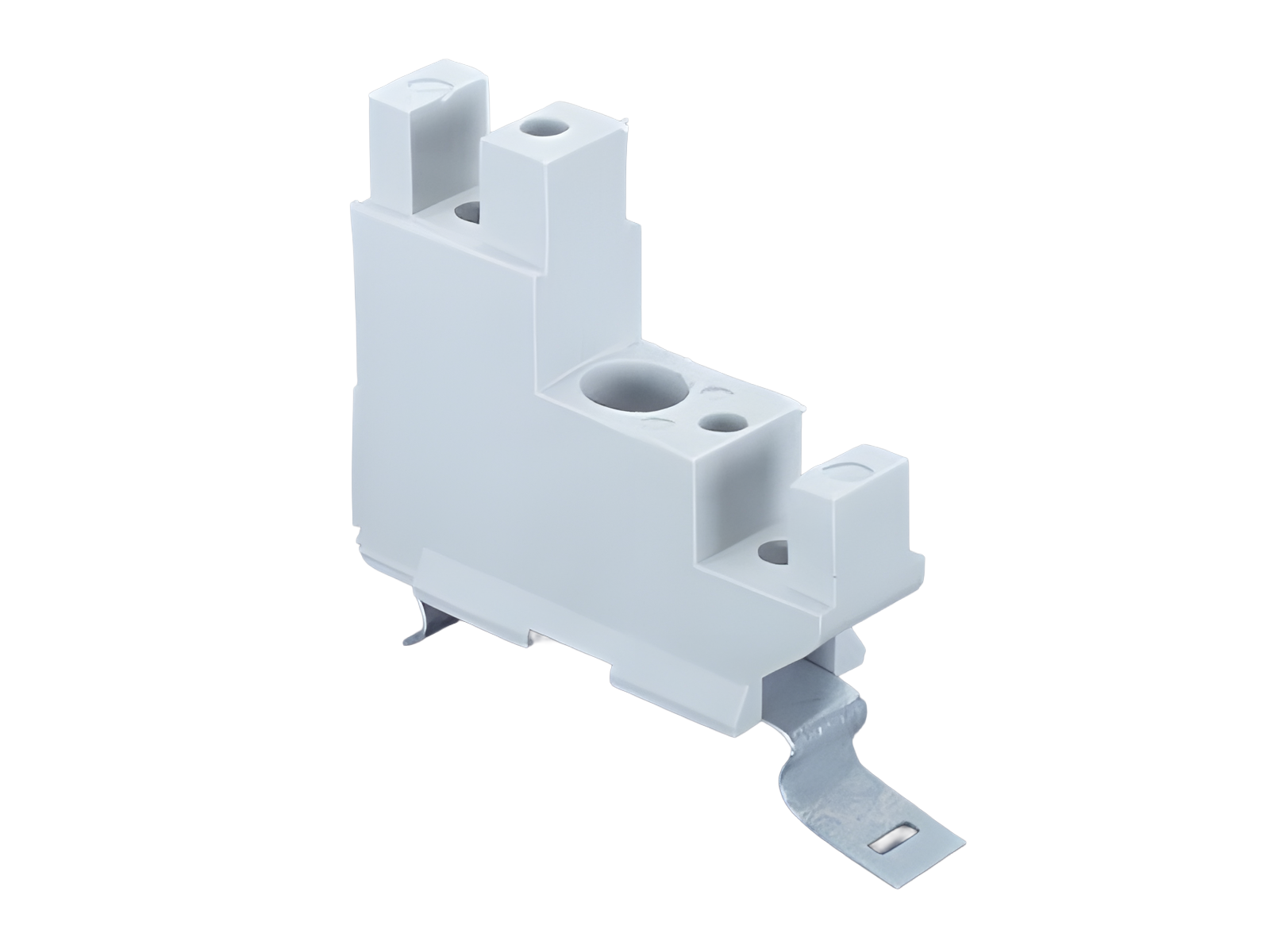

terminal support for PE/N-bar (01121)

The picture may show a similar product.

Description

Part No.: 01121000

terminal support for PE/N-bar

snap-on to mounting rail TH35

Product group 06
Subgroup 30
pack size 50
EAN 4021267011215
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC001166
ETIM 5.0 EC001166

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 10 x 30 x 30
weight: 1,6 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01129000
earth/neutral busbar 63A
24 terminal points
protected against self-loosening
More

01127000
earth/neutral busbar 63A
12 terminal points
protected against self-loosening
More

01126000
earth/neutral busbar 63A
8 terminal points
protected against self-loosening
More

01128000
earth/neutral busbar 63A
16 terminal points
protected against self-loosening
More

01130000
earth/neutral busbar 63A
166 terminal points
protected against self-loosening
More
