D0-fuse base, busbar mounted, 27mm (01492)

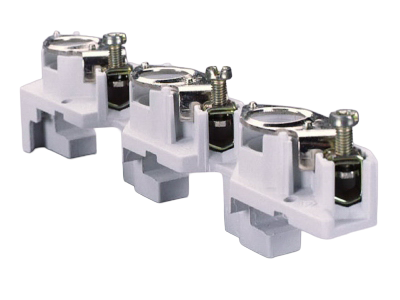

The picture may show a similar product.

Description

Part No.: 01492000

CUSTO^®60Classic

D0-fuse base, busbar mounted, 27mm

E 18 / 3P

for busbars 12, 15, 20, 25, 30 x 10 and section busbars

System

60Classic

Product group	01
Subgroup	06

pack size	10
EAN	4021267014926

catalog page

2007 : 2.16

ECLASS 6.1	27142120
ECLASS 7.1	27142120
ETIM 4.0	EC001644
ETIM 5.0	EC001644

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Approvals

VDE , DNV GL , EAC

type number: 5683

EAC Type: D0

Technical data

fuse links acc. to standard:	IEC / HD 60269-3
permitted power dissipation of the fuse-link:	5,5 W

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019

Electrical data IEC
Rated current (IEC):	63 A
rated voltage (IEC) AC:	400 V

rated voltage (IEC) DC:

250 V

rated surge voltage U_imp :

6 kV

approved wth fuse links of operation class:	gG
short-circuit strength when protected by fuses:	50 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 3,8 W.

(The power dissipation at full load would be 5,9 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:	440 V
max. permitted voltage (IEC) DC:	262 V

Direct contact of the fuse links on the busbar
for fuse links and gauge rings as per DIN VDE 0636-3 IEC / HD 60269-3

Mechanical data
W x H x D:	27 x 200 x 43
weight:	15,2 kg/100
poles:	3-pole
for busbars:	12, 15, 20, 25, 30 x 10 and section busbars

Type of fastening: Click mechanism protects against movement Contact pressure provided by screw cap E18 Tightening torque of box terminals 4Nm

Terminal points
Not suitable for aluminium cables !

Reference

D02 busbar mounted fuse bases are also suitable for D01 busbar mounted fuse bases thanks to special holding springs and special ferrule gauge pieces. From a permanent load of 35A, the 36mm-wide version is recommended due to the heat produced.
