The picture may show a similar product.
Part No.: 01242000A

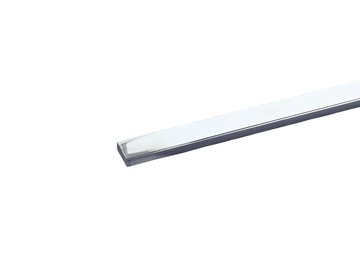

busbar cover
for 12 x 5 busbar, 1 m long
touch protection cover
NEW
System
60Classic, 30Compact 3P
Product group | 06 |
Subgroup | 27 |
pack size | 10 |
EAN | 4021267012427 |
ECLASS 6.1 | 27370390 |
ECLASS 7.1 | 27142190 |
ETIM 4.0 | EC002270 |
ETIM 5.0 | EC002270 |
Standards
IEC 61439-1:2020
Approvals
DNV GL
type number: C12x5
CCC approval: no certification required
Details IEC | |
Standards | |
IEC 61439-1:2020 |
Mechanical data | |
W x H x D: | 1000 x 15 x 10 |
weight: | 4,1 kg/100 |
Reference
For protection against accidental touching of the busbar, back of hand safety. When processing and using the plastic sections, avoid contact with oils, greases and similar chemicals.
