longitudinal busbar connector (01481)

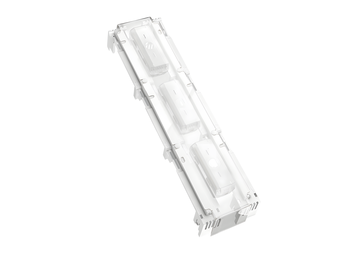

The picture may show a similar product.

Description

Part No.: 01481000A

longitudinal busbar connector

60 mm

for busbars 60, 100, 120 x 10

System

185Power

Product group 07
Subgroup 33
pack size 3
EAN 4021267014810
ECLASS 6.1 27400606
ECLASS 7.1 27400606
ETIM 4.0 EC000713
ETIM 5.0 EC000713

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: CR185-C60

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated voltage (IEC) AC: 690 V
Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 1000 V
max. permitted voltage (IEC) DC: 1500 V
current capacity (IEC) max.: 1.000 A

the busbar connector was tested in an arrangment where the busbar supports at the connection of the 2 systems had a spacing of 200 mm

test conditions: 120x10 - 120x10 (2x 01481)
peak withstand current Ipk: 109 kA
Icw (1,0 s): 51 kA

test conditions: 100x10 - 100x10 (1x 01480 + 1x 01481)
peak withstand current Ipk: 106 kA
Icw (1,0 s): 50 kA

test conditions: 60x10 - 60x10 (1x 01481)
peak withstand current Ipk: 81 kA
Icw (1,0 s): 34 kA
Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated current (UL): 1100 A
rated voltage (UL) AC: 1000 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 1000 V
SCCR unprotected max.: 50 kA
3 cycles (without OPD) @ 1000 V AC
Mechanical data
W x H x D: 47 x 60 x 49
weight: 72,0 kg/100
for busbars: 60, 100, 120 x 10
permitted busbar displacement: 1
permitted spacing between systems: 11 - 14 mm

Application notes

The insulation performance of the article depends on the installation conditions.

Reference

one terminal is required to connect busbars 60x10
2 terminals are required to connect busbars 120x10

a terminal 01480 plus a terminal 01481are required to connect busbars 100x10
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)
