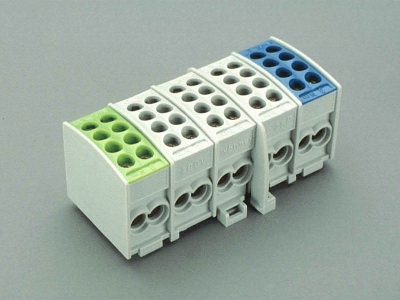

The picture may show a similar product.
Part No.: 02607 000
main branch terminal
5-pole, 5 inserts 4 x 25 mm², neutral blue, earth gr-yell
25 mm²
for mounting rail
no longer available
System
Panel
| Product group | 08 |
| Subgroup | 03 |
| pack size | 20 |
| EAN | 4021267026073 |
Standards
DIN VDE 0603-2/03.98
Approvals
VDE
CCC approval: no certification required
| Details IEC | |
| Standards | |
| DIN VDE 0603-2/03.98 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 400 V |
| rated voltage (IEC) DC: | 400 V |
| rated surge voltage Uimp : | 6 kV |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 690 V |
| max. permitted voltage (IEC) DC: | 690 V |
| Mechanical data | |
| W x H x D: | 100 x 56 x 39 |
| weight: | 33,7 kg/100 |
| poles: | 5-polig |
| Mounting: | for mounting rail |
Snap fastening vertical and horizontal
| Terminal points | |
| Not suitable for aluminium cables ! | |
|
screw M6 : |
|
| Not suitable for aluminium cables ! | |
|
Two clamp screws for making safe contact are located at each point. |
|
