label (78447)

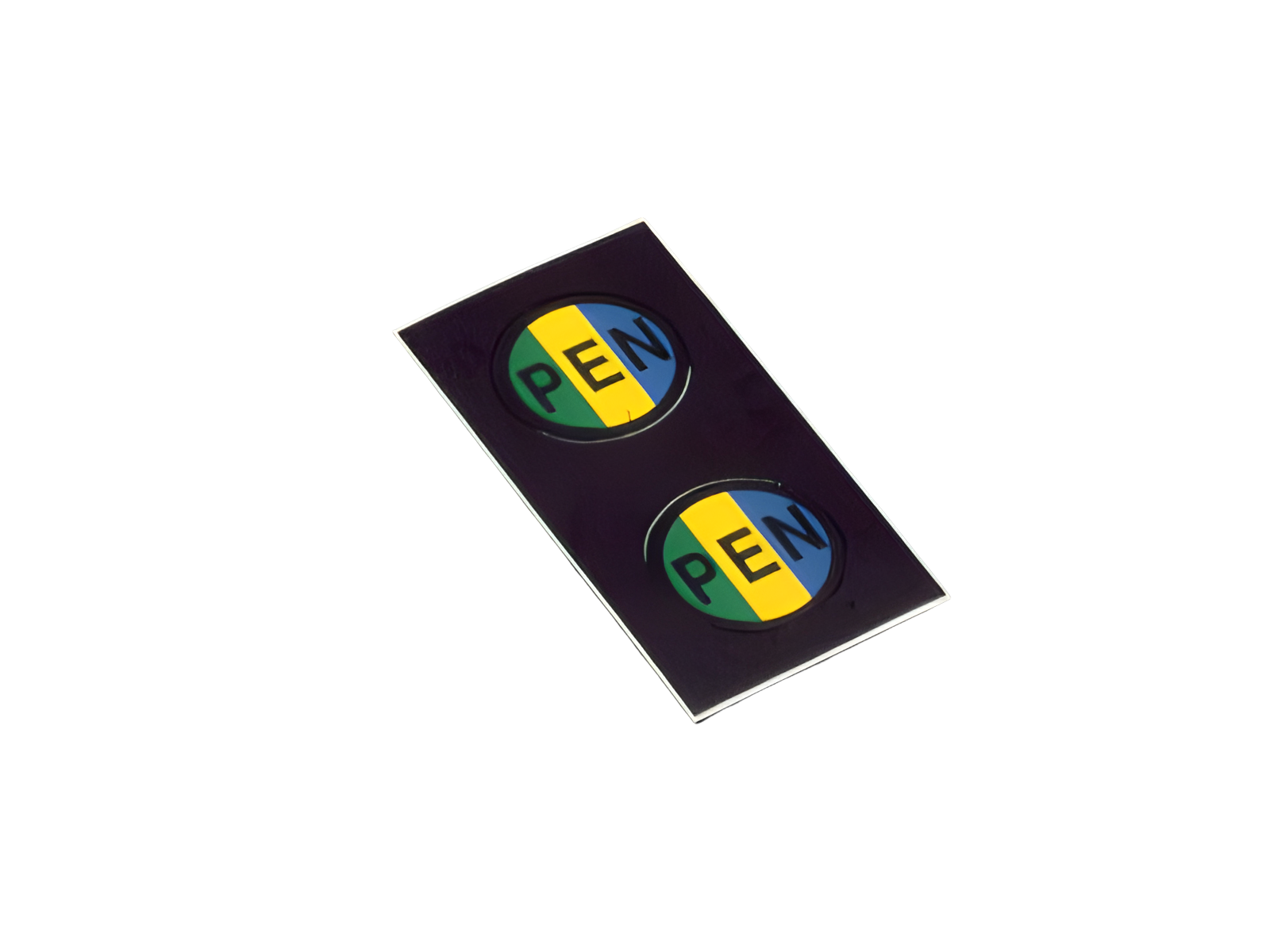

The picture may show a similar product.

Description

Part No.: 78447000

label

PE/N green-yellow / blue

diameter 15 mm

Product group 06
Subgroup 30
pack size 200
EAN 4021267784478
ECLASS 6.1 27149129
ECLASS 7.1 27149129
ETIM 4.0 EC001288
ETIM 5.0 EC001288

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 15 x 15 x 1
weight: 0,1 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

01489000
PE/N-support
1-pole, attachable to 01500 or separate mounting
for busbars: 12, 15, 20, 25, 30 x 5, 10
More

Usage

01489000
PE/N-support
1-pole, attachable to 01500 or separate mounting
for busbars: 12, 15, 20, 25, 30 x 5, 10
More
