End cover for 01479 (01254)

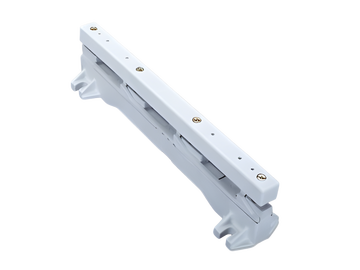

The picture may show a similar product.

Description

Part No.: 01254 000

End cover for 01479

System

100Energy

Product group 06
Subgroup 27
pack size 10
EAN 4021267012540
ECLASS 6.1 27370390
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 22 x 320 x 42
weight: 5,3 kg/100

Application notes

Reference

For covering the ends of the busbars.
short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD symbol 2D DXF

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01479 000
universal busbar support
for undrilled flat busbars 30, 40, 50, 60 x 10
for busbars: 30, 40, 50, 60 x 10
