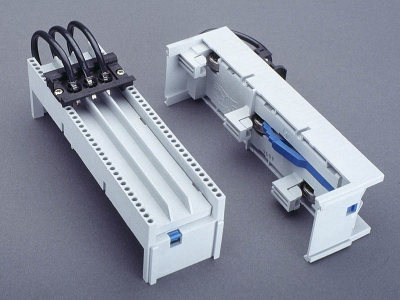

The picture may show a similar product.
System
60Classic
Advantages of the product
Conductor ends ultrasonically sealed.
Click mechanism when pushing onto the busbar.
| Product group | 05 |
| Subgroup | 24 |
| pack size | 4 |
| EAN | 4021267320119 |
Standards
IEC 61439-1:2020
UL 508
Approvals
CSA , UL
for UL feeder circuits >250V
type number: 6063
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 63 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 63 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| Mechanical data | |
| W x H x D: | 54 x 182 x 60 |
| weight: | 25,6 kg/100 |
| poles: | 3-pole |
| There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
|
Reference |
For safe mechanical and electrical connection of all commercially available switchgear to the busbar system, with option to hold free leads, can be offset in the 5mm grid. |
| for UL feeder circuits >250V | |

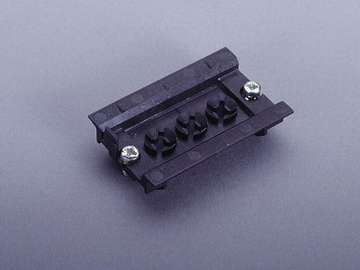

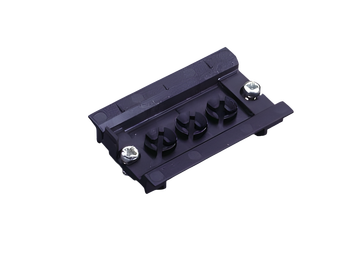

32901
000
mounting rail, plastic
EN 60715, 54 mm wide
35 x 54 x 8.5
