for UL feeder circuits >250V

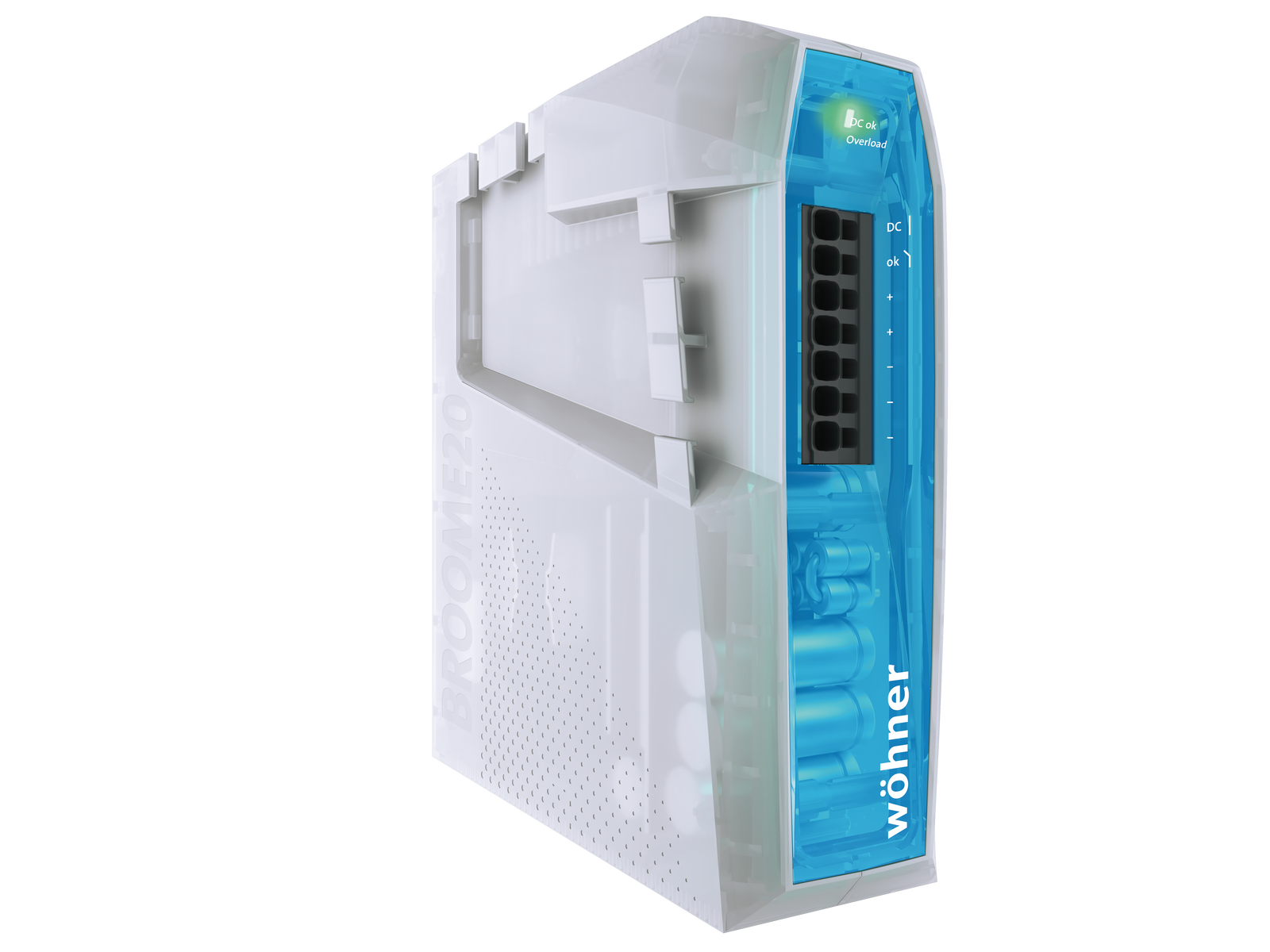

The picture may show a similar product.
Part No.: 36203 000A
BROOME20®CrossBoard
power supply 20 A
400 V AC / 24 V DC, with push-in terminals
with CrossLink® interface
coming soon
System
CrossBoard® 125A / 250A, CrossBoard® 800 A
Advantages of the product
Direct installation to CrossBoard®
Efficiency of 96% permits an intallation width of 49.5 mm
Short-term increase in output current by up to 300%
Self-protected at short-circuit with intelligent re-start
No pre-fuse needed
Overvoltage category III
| Product group | 21 |
| Subgroup | 40 |
| pack size | 1 |
| EAN | 4021267362034 |
| ECLASS 6.1 | 27142325 |
| ECLASS 7.1 | 27142325 |
| ETIM 4.0 | EC002540 |
| ETIM 5.0 | EC002540 |
Standards
IEC 61010-1:2010
IEC 61010-2-201:2013
UL 61010-1
UL 61010-2-201
Approvals
IEC (CB) , UL
for UL feeder circuits >250V
type number: BROOME20
UL file: E497002, UL category (for USA): NMTR. https://www.ul.com
UL file: E497002, UL category (for Canada): NMTR7. https://www.ul.com
| Details IEC | |
| Standards | |
|
IEC 61010-1:2010 IEC 61010-2-201:2013 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 500 V |
| min. operating voltage AC: | 380 V |
| output voltage DC: | 24 V |
| output current: | 20 A |
| voltage control: | No |
| typical hold-up time (400 V): | 20 ms |
| typical hold-up time (480 V): | 20 ms |
| separation input / output: | SELV / PELV |
| over-voltage protection: | 32 V |
| parallel operation possible: | Yes |
| serial operation possible: | Yes |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 500 V |
| rated surge voltage Uimp : | 4 kV |
| 3-pole feeding at L1, L2 and L3 |
| Details UL | |
| Standards | |
|
UL 61010-1
UL 61010-2-201 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated voltage (UL) AC: | 500 V |
| min. operating voltage AC: | 380 V |
| rated frequency (UL): | 50 / 60 Hz |
| Mechanical data | |
| W x H x D: | 49.5 x 160 x 150 |
| weight: | 75,0 kg/100 |
| poles: | 3-pole |
| degree of protection: | IP30 |
| vertical installation position: | Yes |
| horizontal installation position: | No |
| Terminal points | |
| push-in connection | |
| AWG12 (4 mm²) | |
| screw drive: | 0,5x3 |
| wire stripping: | 13 mm |
| min. cross-section: | 0,2 mm² |
| max. cross-section: | 4 mm² |
| min. cross-section UL: | AWG 24 |
| max. cross-section UL: | AWG 12 |
| for UL feeder circuits >250V |
