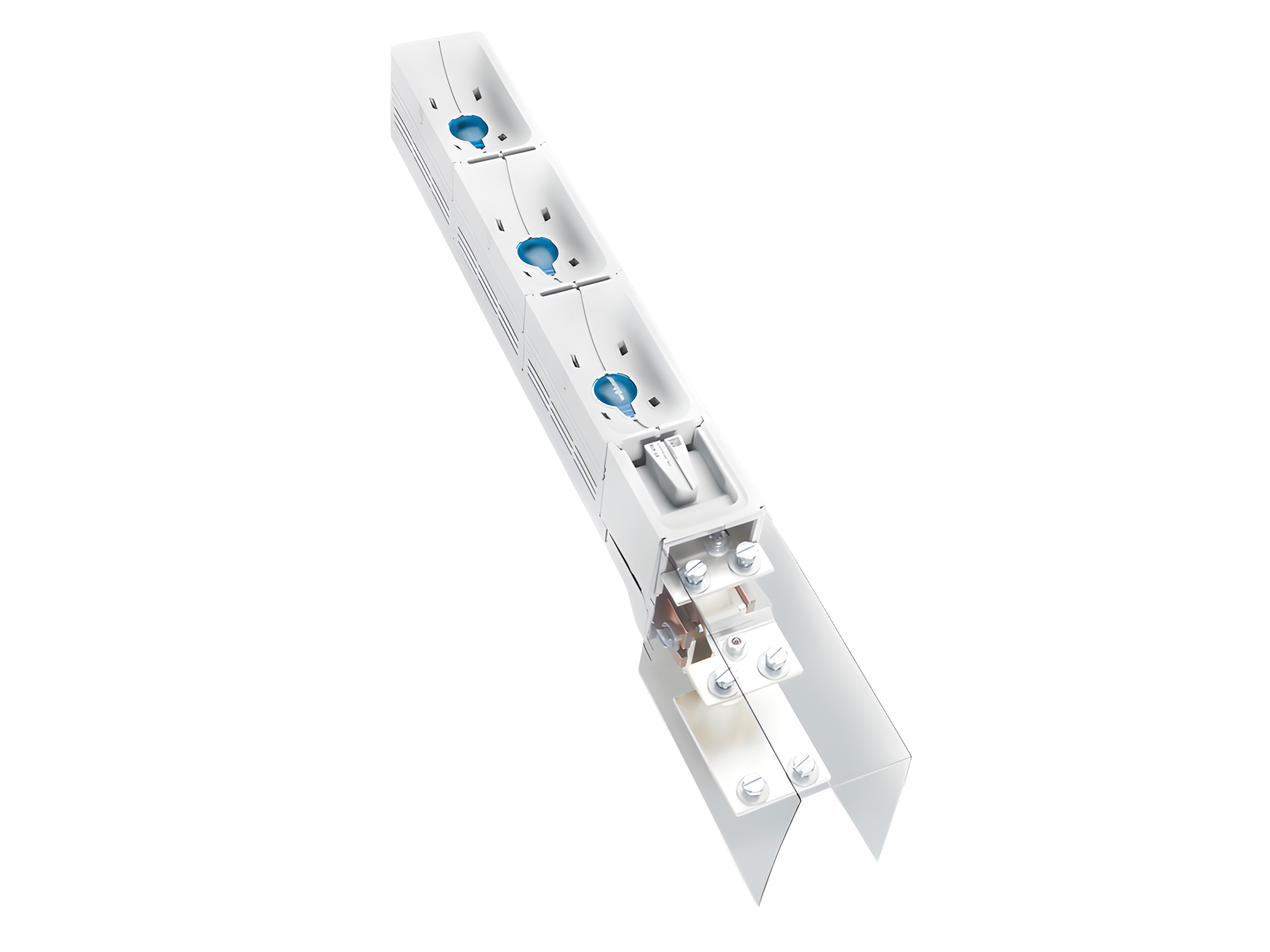

The picture may show a similar product.

Description

Part No.: 01439000A

CRITO®185Power

connection rail

3-pole

for 3 cable lugs 300mm² (offset arrangement), for 4 cable lugs 240 mm² or lam. Cu 80 x 10

connection top or bottom

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Product group 07
Subgroup 57
pack size 1
EAN 4021267014391
ECLASS 6.1 27141146
ECLASS 7.1 27141146
ETIM 4.0 EC000001
ETIM 5.0 EC000001

Approvals

Standards

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

type number: CRL185-1000

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
Electrical data IEC
rated current (IEC): 1400 A
rated voltage (IEC) AC: 690 V
rated peak withstand current  Ipk max.: 87.4 kA
rated short-time withstand current Icw (1.0 s) max.: 40.6 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 352,0 W.

(The power dissipation at full load would be 550,0 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 1000 V
max. permitted voltage (IEC) DC: 1500 V
current capacity (IEC) max.: 1.400 A

a current carrying capacity of 1400A was proved, when connected with 4 cables 240mm² (direct screw connection of the connection rail to the busbar system)

the current carrying capacity is reduced to 1200A when the connection rail is combined with the terminal clamps 33 738 or 33 740

it is possible to connect up to 4 cable lugs 300mm² acc. to DIN 46235
Mechanical data
W x H x D: 100 x 960 x 150
weight: 1050,0 kg/100
poles: 3-pole
for busbars: 30, 40, 60, 80, 100, 120 x 10
Terminal points
screw connection
M12

Application notes

The insulation performance of the article depends on the installation conditions.

Reference

For using more connection rails in parallel, a rated diversity factor according IEC 61439 should be taken into account.
For using accessorie 33736 Al is not allowed.
