connection terminal plate, 3-pole (01570)

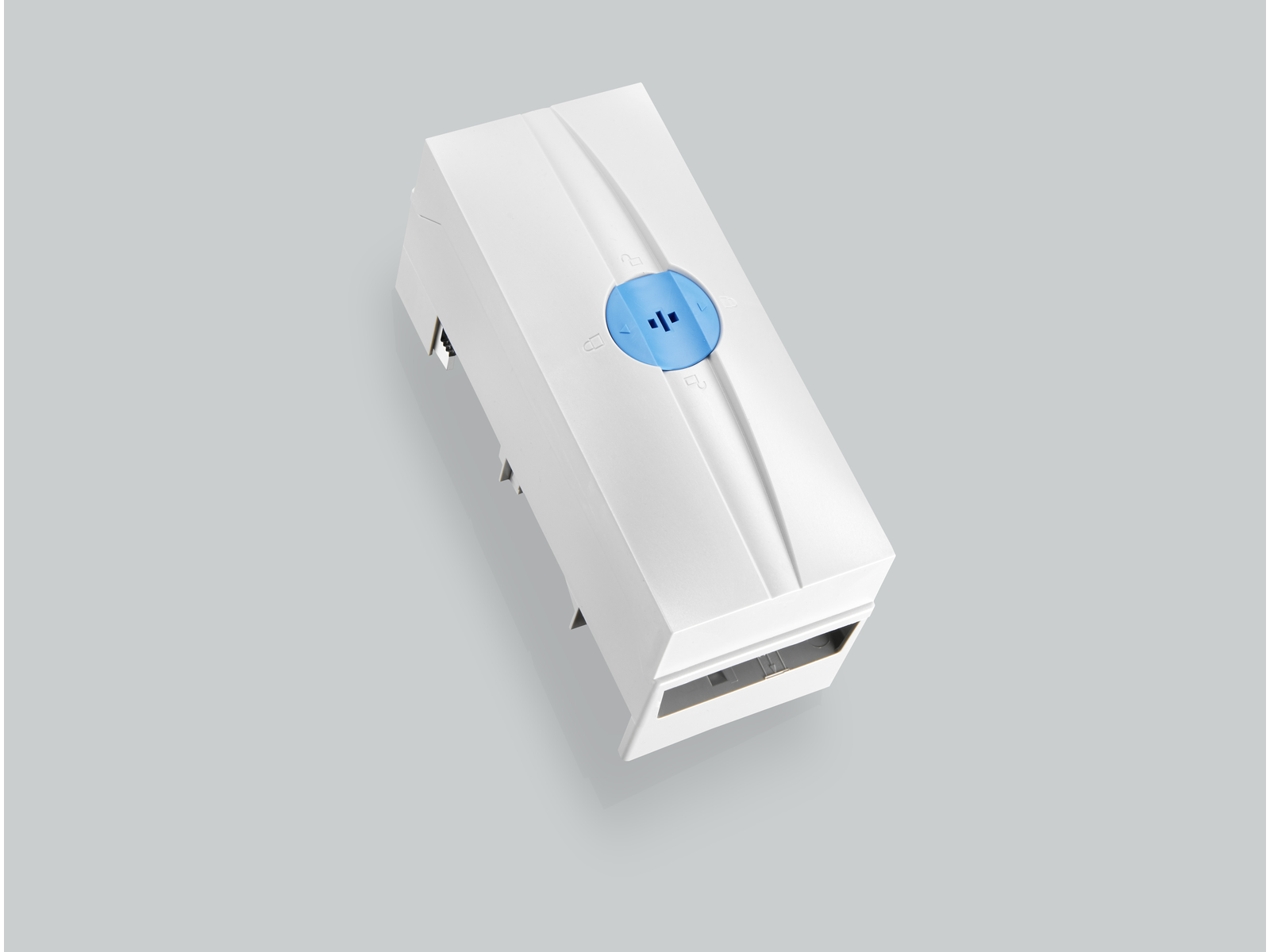

The picture may show a similar product.

Description

Part No.: 01570000A

CRITO^®60Classic

connection terminal plate, 3-pole

10 - 120 mm², AWG 2 - 250 MCM, lam. Cu. 9 - 15,5 x 2,4 - 10

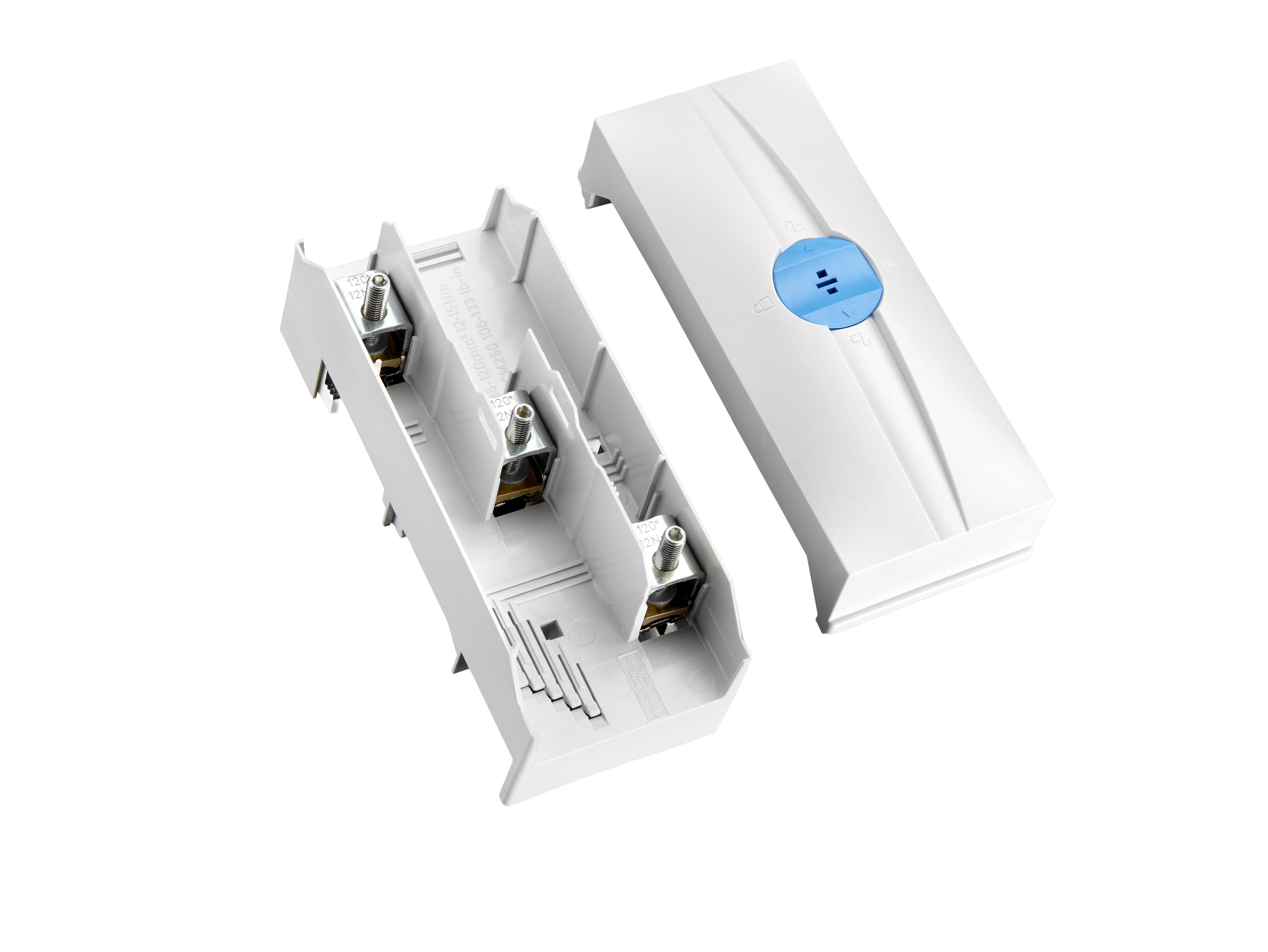

cover can be removed with tool only

for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars

System

60Classic

Advantages of the product

Terminals can be removed for connection of uncut conductors

Product group	07
Subgroup	45

pack size	1
EAN	4021267015701

ECLASS 6.1	27141146
ECLASS 7.1	27141146
ETIM 4.0	EC000001
ETIM 5.0	EC000001

Approvals

Standards

IEC 61439-1:2011
IEC 60999-1:1999
IEC 60999-2:2003

UL 508

Approvals

CSA , UL , DNV GL , EAC

for UL feeder circuits >250V

type number: 243-L

EAC Type: TE-3P

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2011 IEC 60999-1:1999 IEC 60999-2:2003

Electrical data IEC
Rated current (IEC):	250 A
rated voltage (IEC) AC:	690 V

rated surge voltage U_imp :	6 kV

The insulation performance of the article depends on the installation conditions.

rated peak withstand current I_pk max.:

56.3 kA

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:	1000 V
max. permitted voltage (IEC) DC:	1500 V
current capacity (IEC) max.:	440 A

Details UL
Standards
UL 508

for UL feeder circuits >250V
suitable for field-installed conductors

Electrical data UL
rated current (UL):	255 A
rated voltage (UL) AC:	600 V
rated frequency (UL):	50 / 60 Hz

SCCR unprotected max.:	10 kA
	3 cycles (without OPD) @ 600 V AC
SCCR protected max.:	100 kA

SCCR:

50 kA with any DIVQ/7 circuit breaker 600 A / 480 V AC
65 kA with any DIVQ/7 circuit breaker 400 A / 480 V AC
100 kA with JDDZ fuse Class J 600 A / 480 V AC
35 kA with any DIVQ/7 circuit breaker 600 A / 600 V AC
100 kA with JDDZ fuse Class J 500 A / 600 V AC

Mechanical data
W x H x D:	81 x 200 x 84
weight:	53.5 kg/100
poles:	3-pole
for busbars:	12, 15, 20, 25, 30 x 5, 10 and section busbars

Terminal points
cage clamp connection
wire stripping:	25 mm
min. cross-section:	35 mm²
max. cross-section:	120 mm²
Terminal space:	15 x 15
Md min.:	12.0 Nm
Md max.:	12.5 Nm
Not suitable for aluminium cables !

16 - 120 mm² / AWG 6 - 250 MCM flexible cables, directly 10 - 120 mm² / AWG 7 - 250 MCM flexible cables with wire-end ferrule 16 - 150 mm² / AWG 6 - 300 MCM stranded round cables 10 mm² rigid cables lam. Cu 12x4 - 15,5x10 Md 12 - 12,5 Nm / 106 lb-in (flexible cables of maximum cross-section may not fit when using wire-end ferrule)
