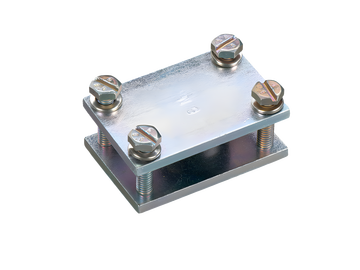

01206 000

flat terminal
connection of busbar 40 wide with lam. Cu 20 wide
More

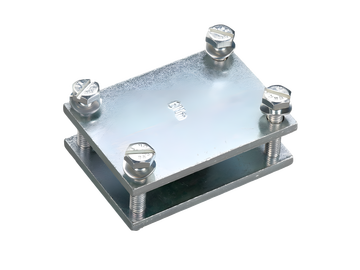

01207 000

flat terminal
connection of width 50 and 32
More

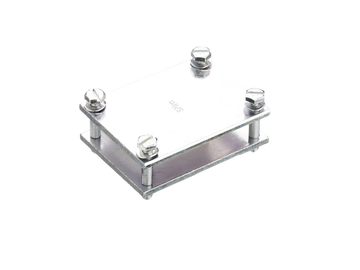

01218 000

flat terminal
connection of width 63 and 40
More

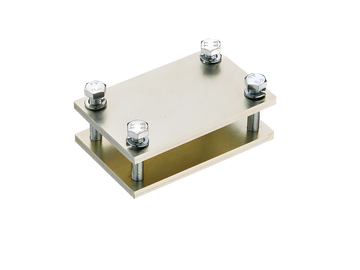

01222 000

flat terminal
connection of width 80 and 40
More

01586 000

flat terminal
connection of busbar 30 wide with lam. Cu 30 wide
More

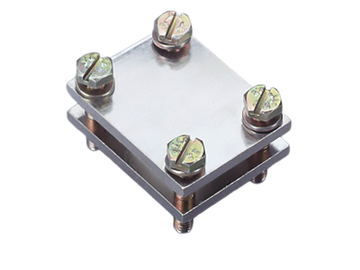

01587 000

flat terminal
connection of busbar 35 wide with lam. Cu 30 wide
More

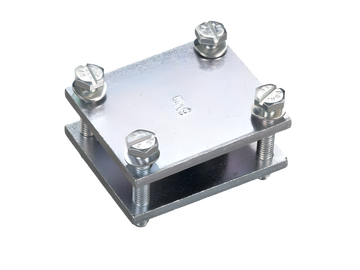

01616 000

flat terminal
connection of busbar 40 wide with lam. Cu 32 wide
More

01997 000

flat terminal
connection of busbar 30 wide with lam. Cu 20 wide
More

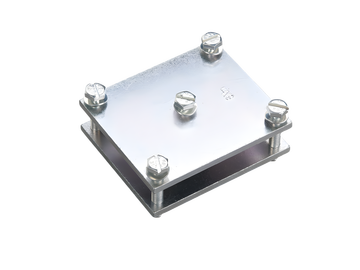

01617 000

flat terminal
connection of width 63 and 50
More
