01715 000

D01 gauge ring 2 A
pink
E 14
More

01716 000

D01 gauge ring 4 A
brown
E 14
More

01717 000

D01 gauge ring 6 A
green
E 14
More

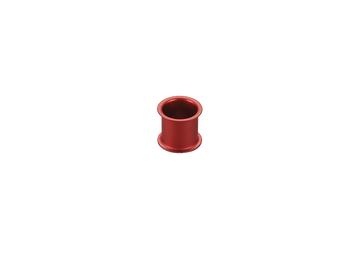

01718 000

D01 gauge ring 10 A
red
E 14
More

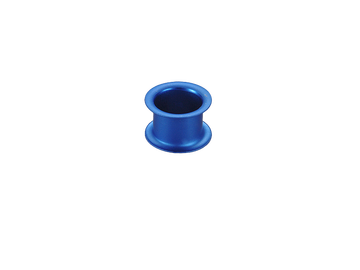

01719 000

D02 gauge ring 20 A
blue
E 18
More

01720 000

D02 gauge ring 25 A
yellow
E 18
More

01723 000A

D02 gauge ring 32 A
purple
E 18
More

01721 000

D02 gauge ring 35 A / 40 A
black
E 18
More

01722 000

D02 gauge ring 50 A
white
E 18
More

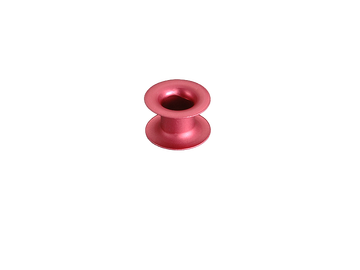

01724 000

special D01 gauge ring 2 A
pink
E 18
More

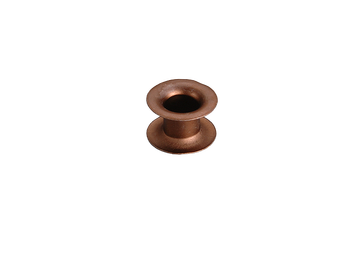

01725 000

special D01 gauge ring 4 A
brown
E 18
More

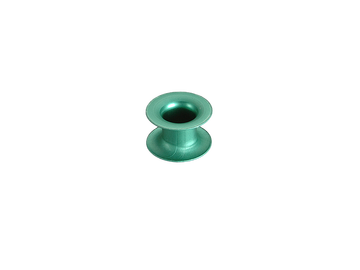

01726 000

special D01 gauge ring 6 A
green
E 18
More

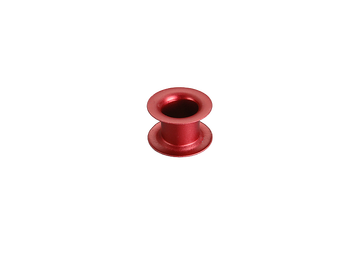

01727 000

special D01 gauge ring 10 A
red
E 18
More

01728 000

special D01 gauge ring 16 A
grey
E 18
More
